Robben Ford Pedalboard v.2
Sunday, April 22, 2012

Here is an update to the pedalboard that I constructed for Robben Ford:

http://www.robbenford.com

Information on the first version of Robben's pedalboard can be seen here:

http://www.vertexeffects.com/blog/vertex_robben_ford_pedalboard

Now that Robben has had some time with the rig, he decided to change a few of the capabilities and effects that he's using on the pedalboard. The changes include:

- Removing the Dumkudo (Robben still loves this pedal, but is finding that he rarely uses backline amplifiers which was his intention for using this pedal. My understanding is that he's going to use it loose on the floor when needed).

- Moving locations of the Arion "Landau Modified" SCH-1 Chorus pedal

- Moving Vertex Boost in place of the Dumkudo

- Adding a Custom Stereo A/B unit for the two reverb pedals (Robben was finding that it was too complicated to switch between his two reverbs quickly, and asked that I build a custom A/B unit that could switch between the two pedals with one footswitch and then an additional footswitch as a bypass for when reverb was not needed).

- Adding two output buffer voicings depending on the amp and cabinet combination that Robben is using. I have a toggle switch mounted on the left side of the interface to change the between a dark voicing that Robben prefers with the Dumble, and a warmer voicing that's more for backline/Blackface Fender-style amplifiers.

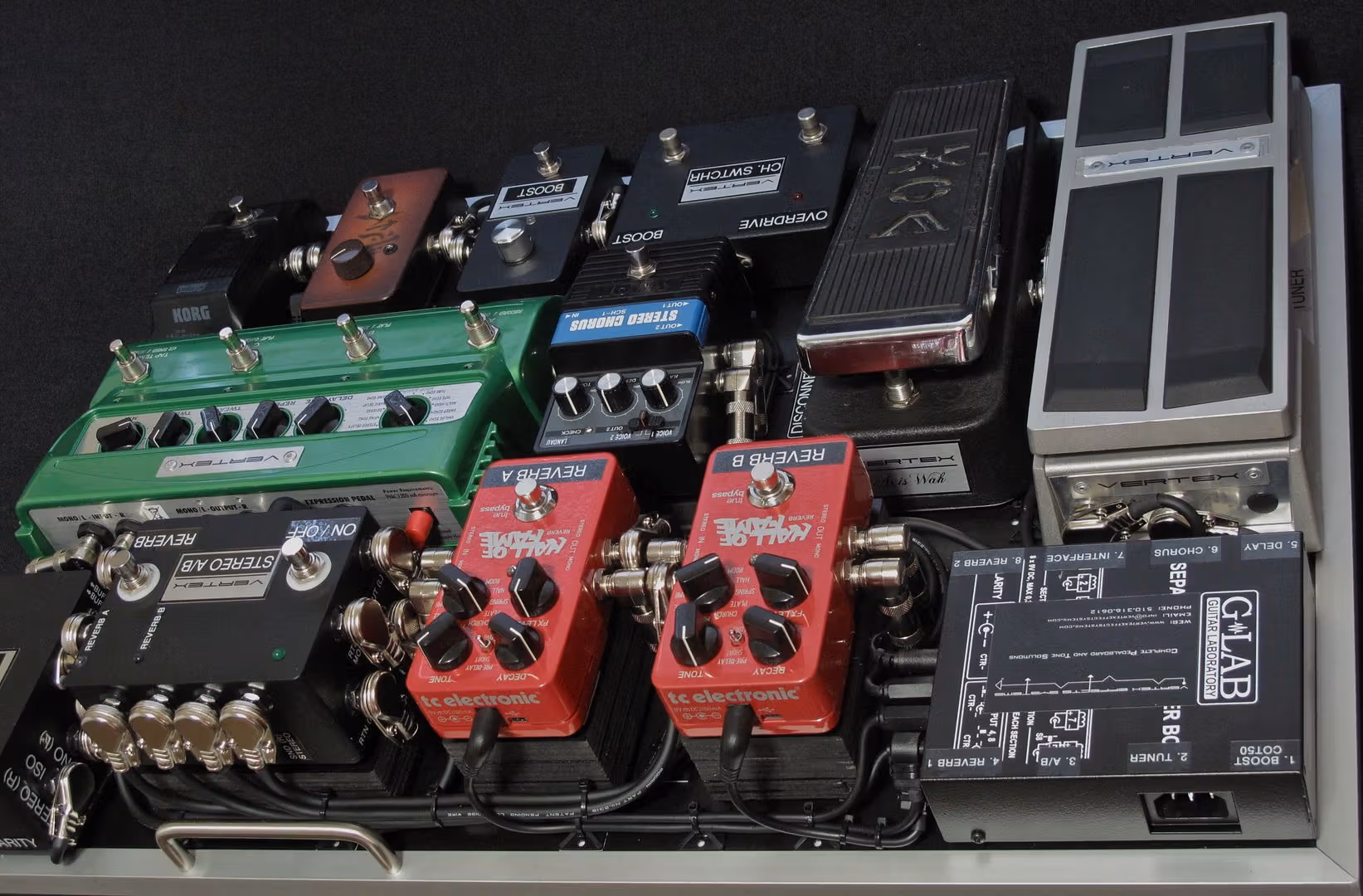

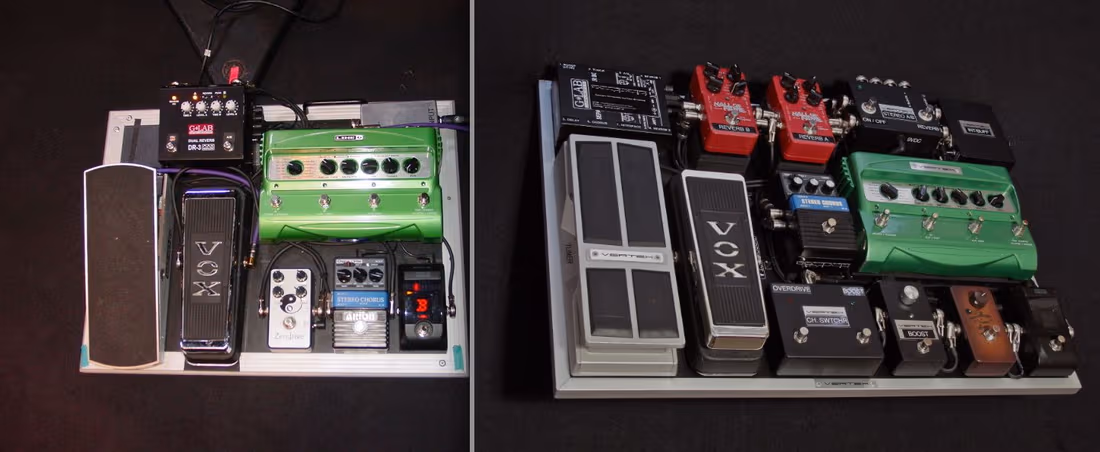

Here’s a BEFORE and AFTER of the original (pre-Vertex) pedalboard and the newest version:

Zoom in (real dimensions: 798 x 328)Image

INTERFACE

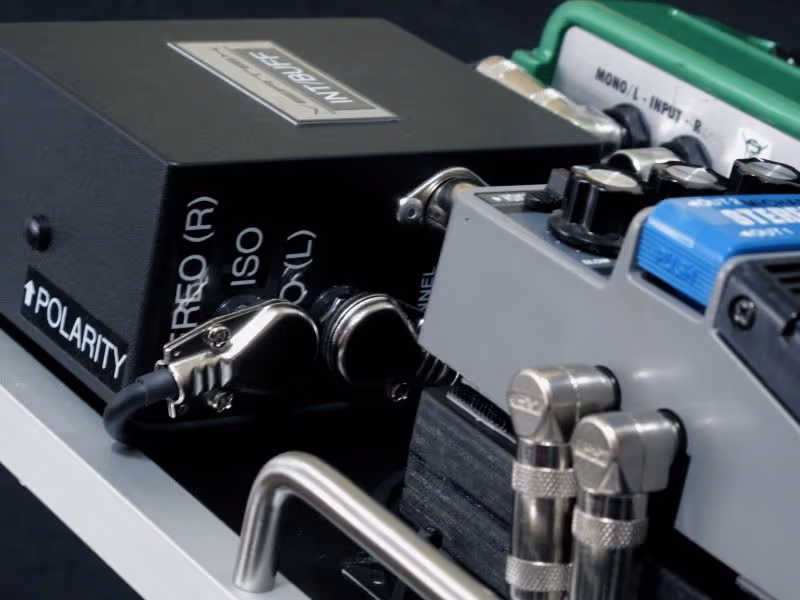

Passive Input (no buffer), Stereo Outputs (left and right) with Vertex Dual Output Buffers tweaked to Robben’s taste with two voicings (adjustable via toggle switch), isolation transformer on left output to prevent any grounding when using two amplifiers together, and a polarity switch to optimize sonic performance when using two amplifiers in a stereo set up.

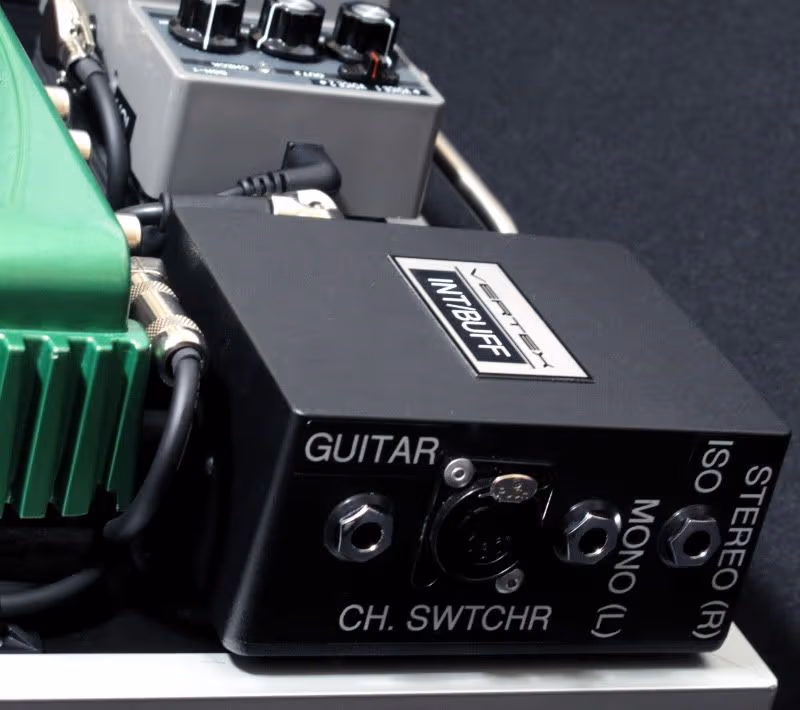

There is also an additional 5-pin DIN to 5-pin XLR junction in the center of the interface to allow Robben’s Dumble to be switched from the pedalboard. The pedalboard side is all 5-pin DIN at both the switcher and interface, on the outboard side the interface is all 5-pin XLR so that any 5-pin XLR. The interface is wired to accept any 5-pin DIN or XLR and the configuration for the Dumble switching is all done inside of the interface so any “off the shelf” cable could be used in an emergency with the same orientation.

Zoom in (real dimensions: 800 x 710)Image

Zoom in (real dimensions: 800 x 600)Image

POWER SUPPLY

Guitar Laboratory PB-1

SIGNAL PATH

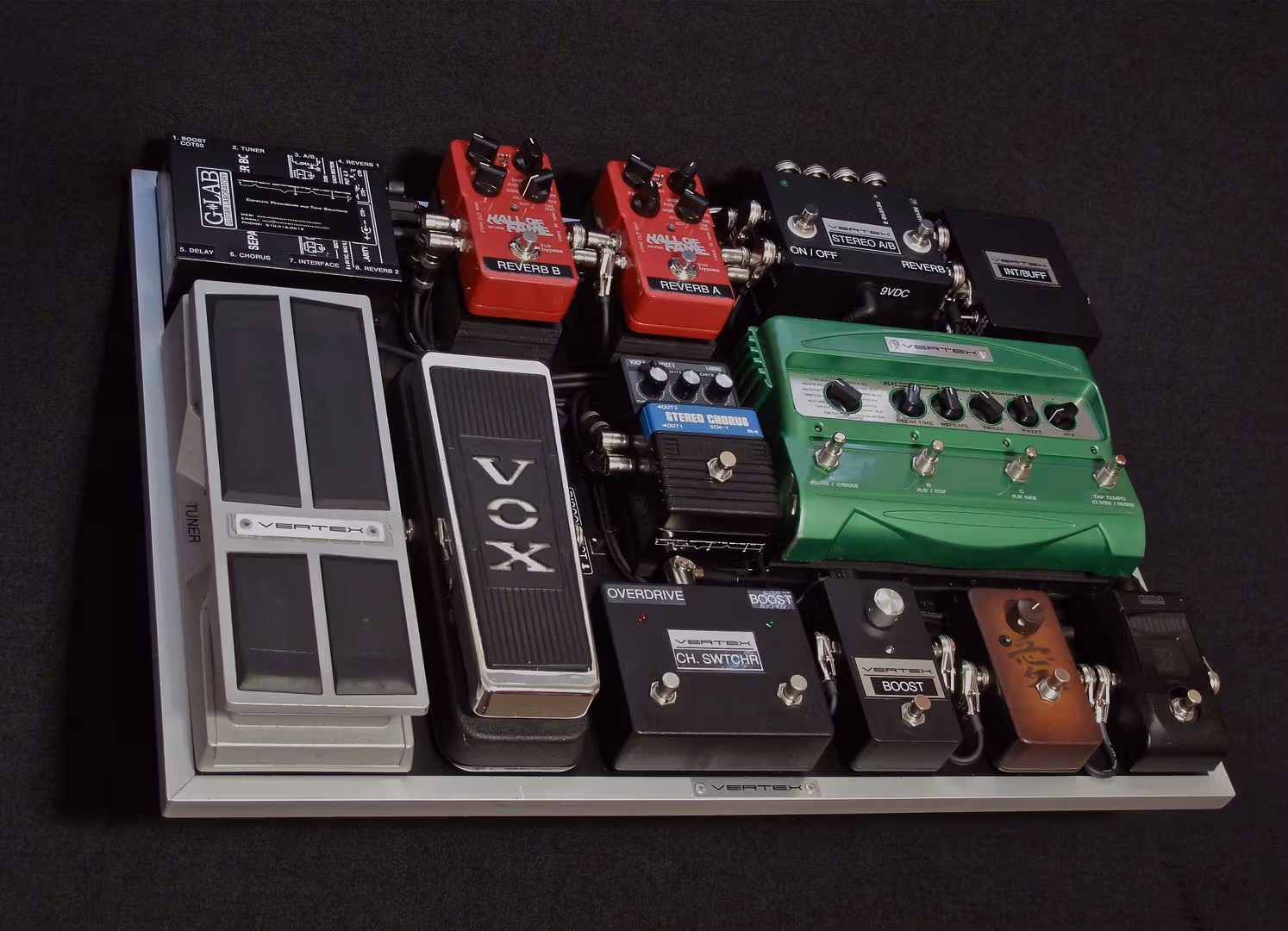

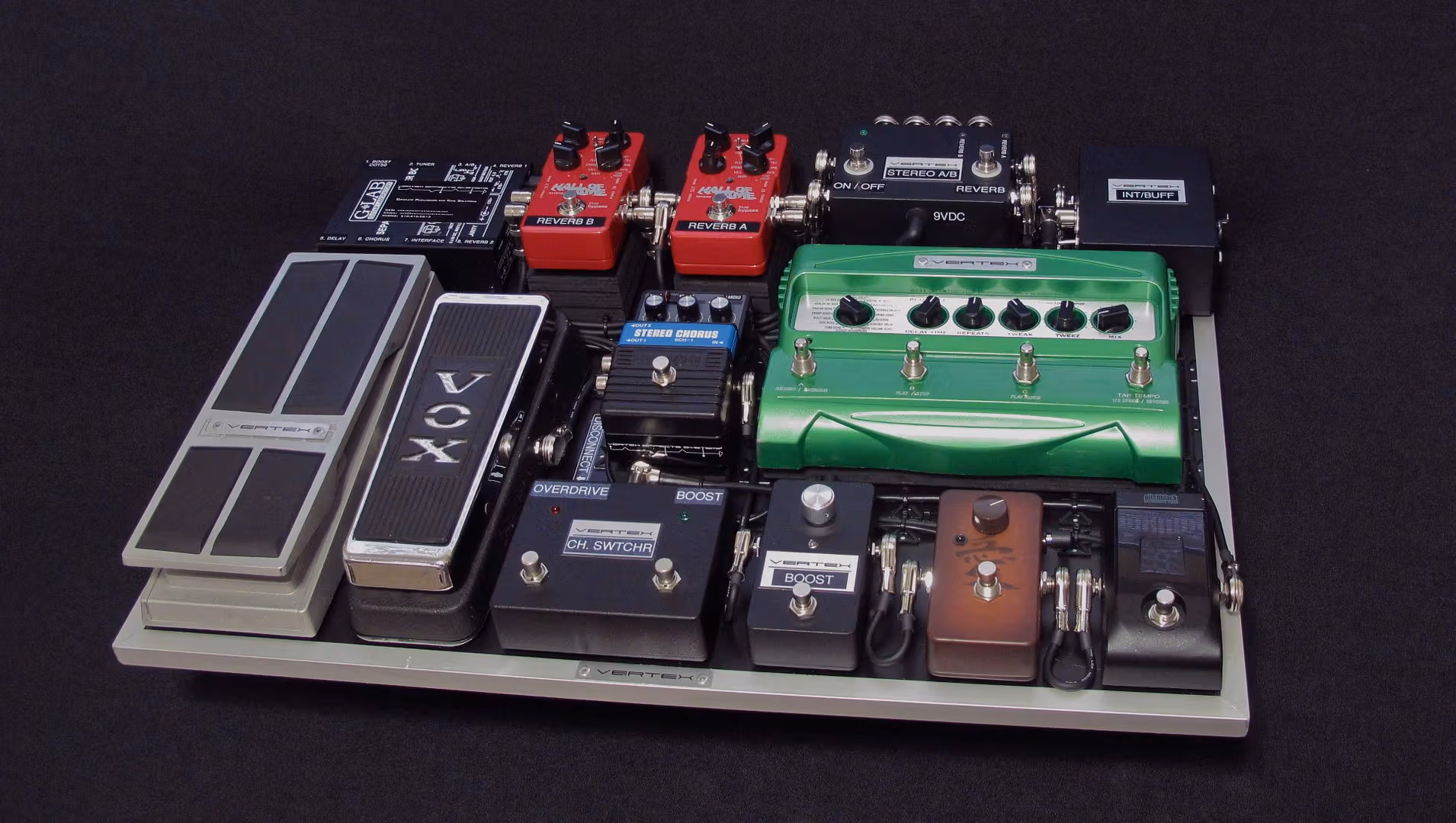

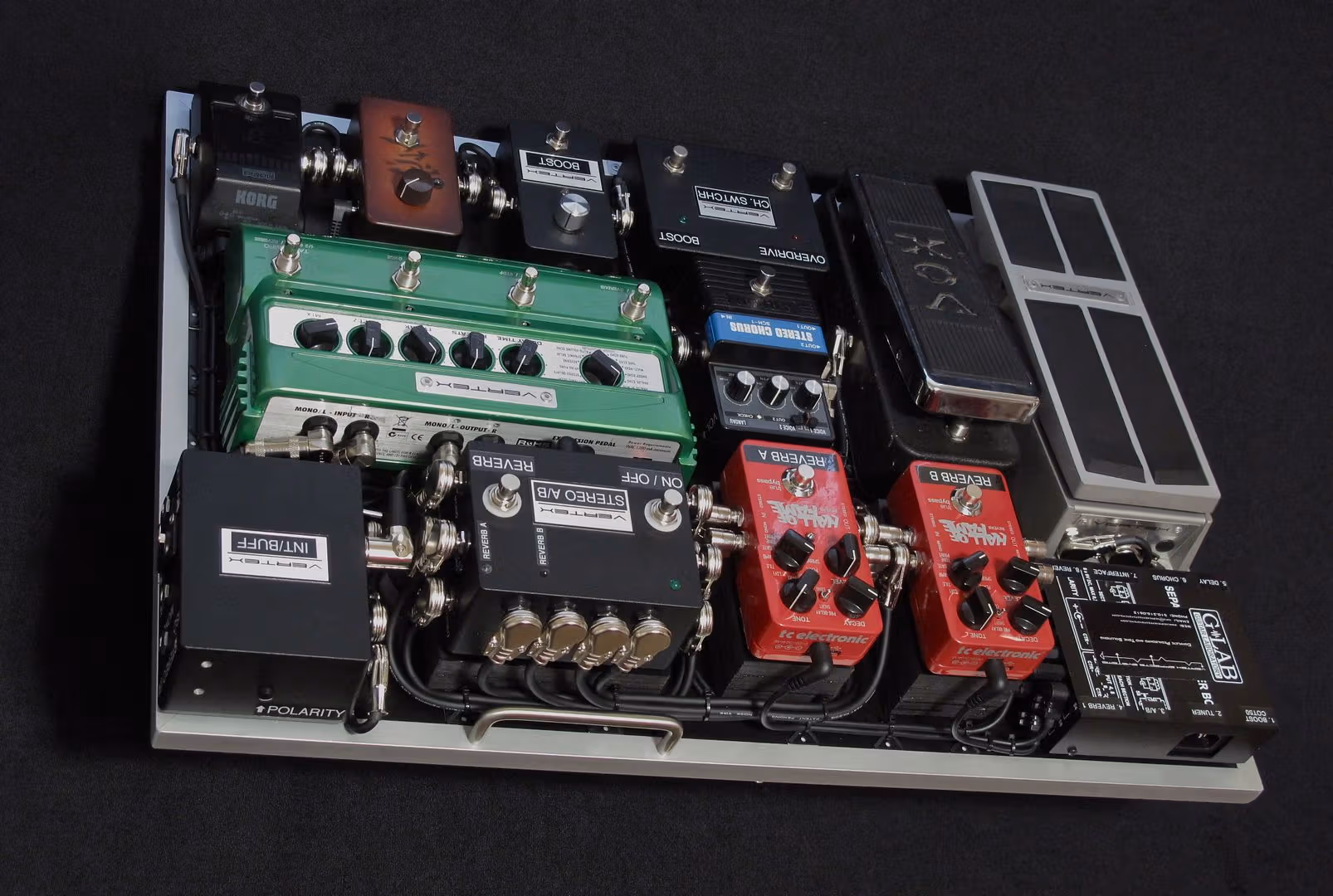

Interface (passive), Korg Pitchblack Tuner, Lovepedal COT 50 Lil’ China, Vertex Boost (Prototype), Vox Wah (Vertex Axis Mod), Vertex Volume Pedal (modified Boss FV-500), Vertex “Michael Landau” Modified Arion Chorus (stereo), Vertex modified Line 6 DL-4 (stereo), VERTEX STEREO A/B BOX (Two T.C. Electronic Hall of Fame Reverbs in stereo), Interface (Stereo Outputs with Vertex Dual Output Buffers, ISO transformer on left output, and a polarity switch).

*Vertex Amplifier Channel Switch is for Dumble Overdrive Special and is connected through the interface which has a 5-pin DIN to XLR pass-through).

*Wah is powered off of batteries as requested by Robben.

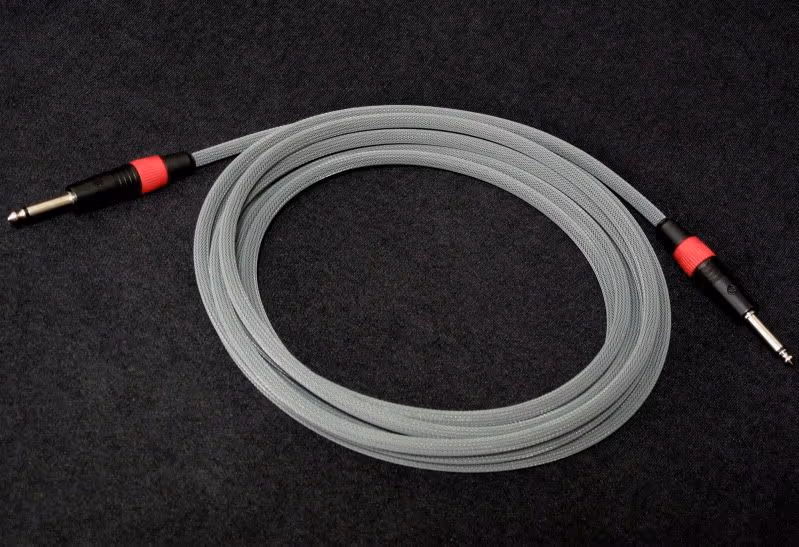

* Robben is using Vertex Prototype Instrument Cables going in and out of the rig (see pictures below).

* XLR Cable is wired with Belden 9540 with two leads connected to each pin to maximum durability (if one lead becomes detached or fails the cable will still function flawlessly - see pictures below).


Zoom in (real dimensions: 800 x 578)Image

Zoom in (real dimensions: 799 x 452)Image

Zoom in (real dimensions: 800 x 538)Image

Zoom in (real dimensions: 799 x 599)Image

Zoom in (real dimensions: 799 x 525)Image

Zoom in (real dimensions: 799 x 547)Image

Zoom in (real dimensions: 799 x 562)Image
