Fully Loaded Pedalboard

Saturday, July 09, 2011

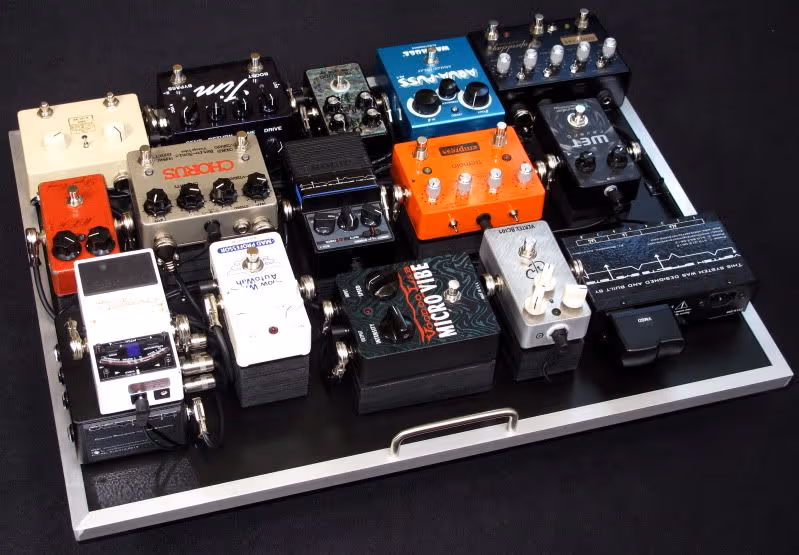

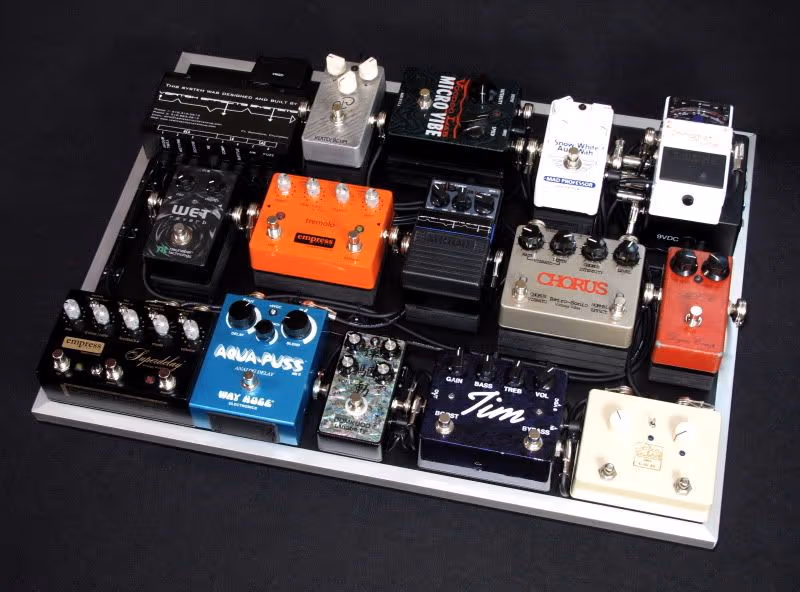

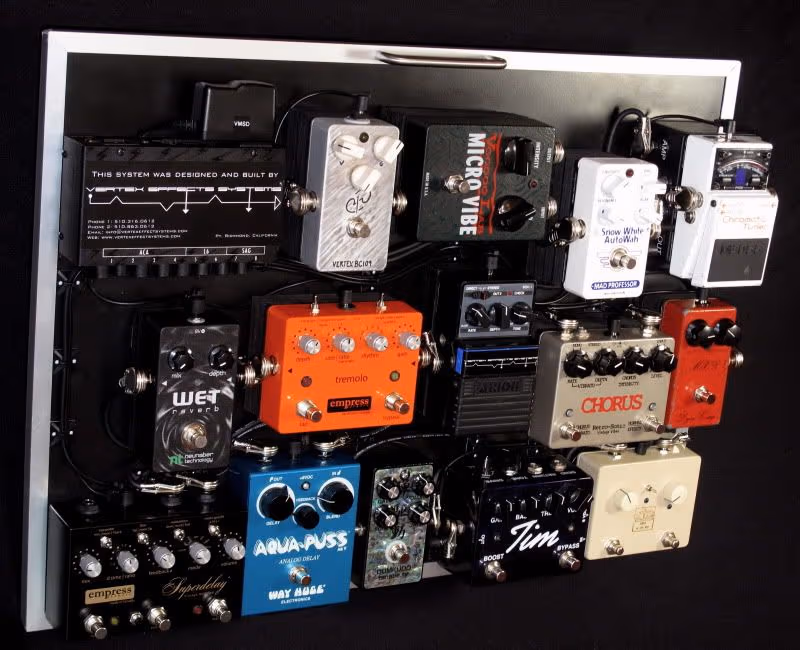

Here is a pedalboard that I finished for a local Bay Area player. The client wanted it nice and compact (23" x 18") with 15 pedals. It's got some of my favorite devices, it can do anything, and just sounds KILLER!!!

INTERFACE:

Passive Input (for Fuzz) with a patchable Vertex Dual Buffer and a Break-Out loop to wire a volume pedal in after the distortion pedals and before the modulation and time-based pedals.

The Break-Out is only in use when there is a cable plugged into the right side of the interface, the return jack is shorting, sending the signal back to the pedals when the volume pedal is not plugged in.

POWER SUPPLY:

Voodoo Lab Pedal Power 2

ORDER OF PEDALS:

INTERFACE (passive), Mad Professor Snow White Auto Wah, Voodoo Lab Micro Vibe, Vertex BC109 Fuzz, INTERFACE (input buffer), Boss TU-2 Tuner, Vintage MXR Dyna Comp, Lovepedal Les Lius, TIM, Tanabe Dumkudo, INTERFACE (break-out to volume pedal), Retro-Sonic Chorus, Arion SCH-1 Chorus (Landau Mod), Way Huge Aqua-Puss, Empress Vintage Modified Superdelay, Empress Tremolo, WET Reverb, INTERFACE (output buffer)
