Tone Monster Pedalboard

Friday, June 24, 2011

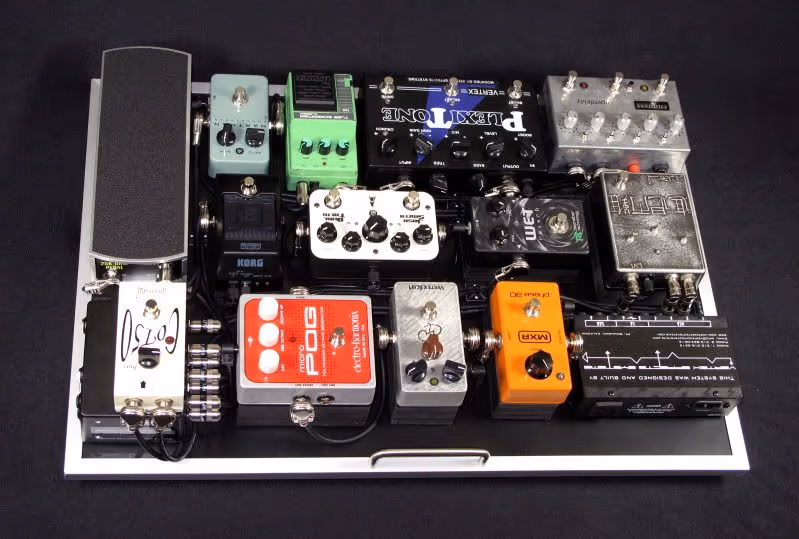

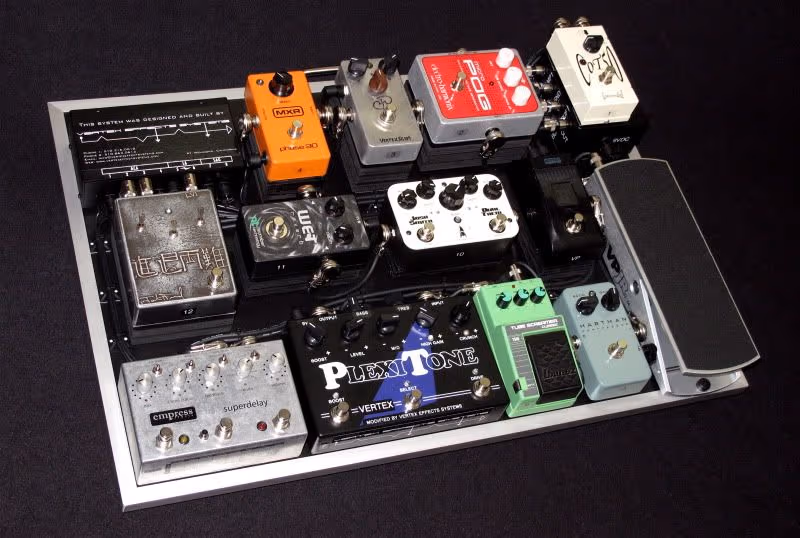

Here's a pedalboard that I did for a client back in Boston, MA who just finished at Berklee. It has some of my favorite pedals and has some of the best tones of any pedalboard I've built. The clean tones in stereo are amazing and lush a full. The fuzz and overdrive tones are thick and fat and everything works amazing well together.

INTERFACE

Passive Input (for fuzz), Patchable Buffer, Effects Break-Out (to wire pedals in the middle of the chain, but off of the pedalboard), Stereo Outputs (isolated on second output), Polarity Switch (to adjust polarity in stereo set-up).

Zoom in (real dimensions: 799 x 406)Image

POWER SUPPLY

Voodoo Lab Pedal Power 2+

ORDER OF EFFECTS

INTERFACE (passive), Lovepedal COT50, EHX Micro POG, Vertex BC109 Fuzz, Vintage MXR Phase 90, INTERFACE (input buffer), Hartman Compressor, Ibanez TS-10, Vertex Plexitone, INTERFACE (effects break out), Volume Pedal (EBVP JR. 25K), Empress Superdelay, Rockett Josh Smith Dual Tremolo, WET Reverb, Fromel Seraph Chorus, INTERFACE (stereo outs w/dual output buffers and ISO transformer)

Zoom in (real dimensions: 800 x 538)Image

Zoom in (real dimensions: 799 x 533)Image

Zoom in (real dimensions: 799 x 539)Image

Zoom in (real dimensions: 799 x 561)Image
