David Lindley/Duane Allman Inspired Slide Pedalboard

Friday, January 04, 2013

DIMENSIONS

24.5" x 19"

WEIGHT

29 lbs.

INTERFACE

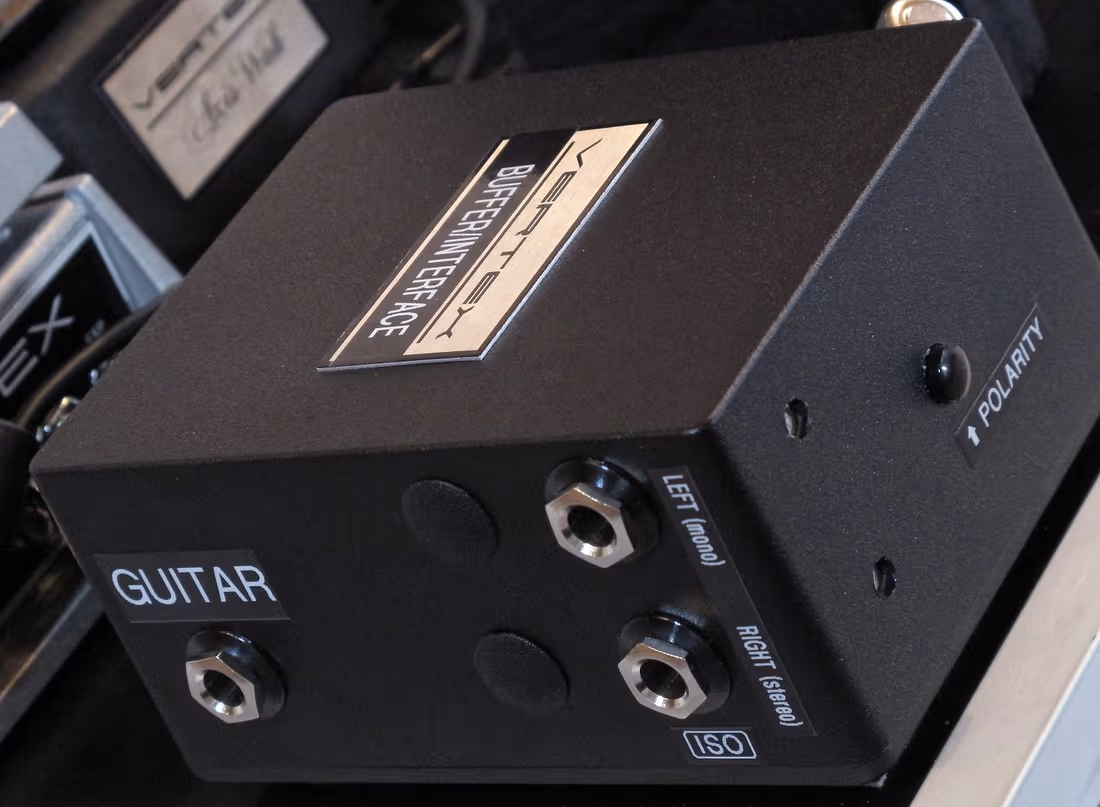

Vertex Tri-Buffer (single input buffer and dual output buffer) with a polarity switch and isolation transformer on the right output for a stereo amplifier set-up. Both L and R outputs sum to MONO when the system is run out of the L out only.

Zoom in (real dimensions: 1024 x 751)Image

CABLE

Vertex Instrument Cable (small diameter)

CONNECTORS

Vertex 1/4" Pancake, R/A, and Straight
Switchcraft 380

POWER SUPPLY

Voodoo Lab Pedal Power 2+

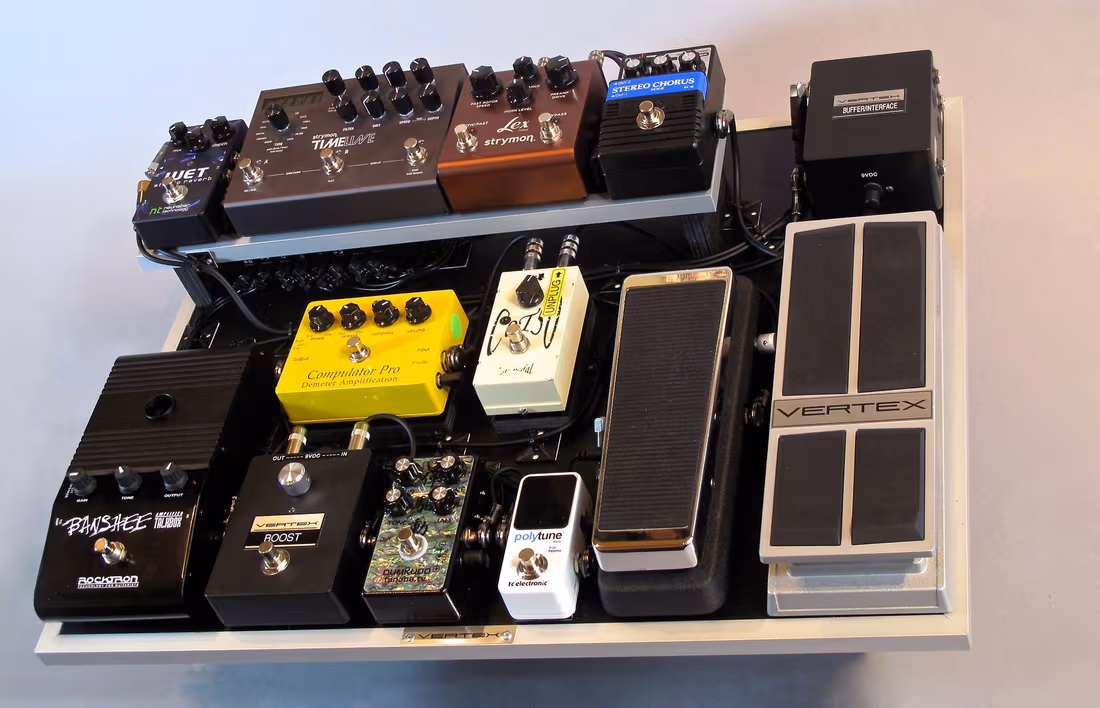

SIGNAL PATH

INTERFACE (input buffer)
Lovepedal COT50
Demeter Compulator Pro
Vertex Axis Wah
T.C. Electronic Polytune Mini
Tanabe Dumkudo
Vertex Boost
Rocktron Banshee Talkbox
Vertex Volume Pedal
Landau Stereo Chorus (stereo)
Strymon Lex Rotary (stereo)
Strymon Timeline (stereo)
Neunaber Stereo WET Reverb (stereo)
INTERFACE (output buffers for L and R)
