Compact Musicom Pedalboard

Thursday, November 15, 2012

DIMENSIONS

23" x 16"

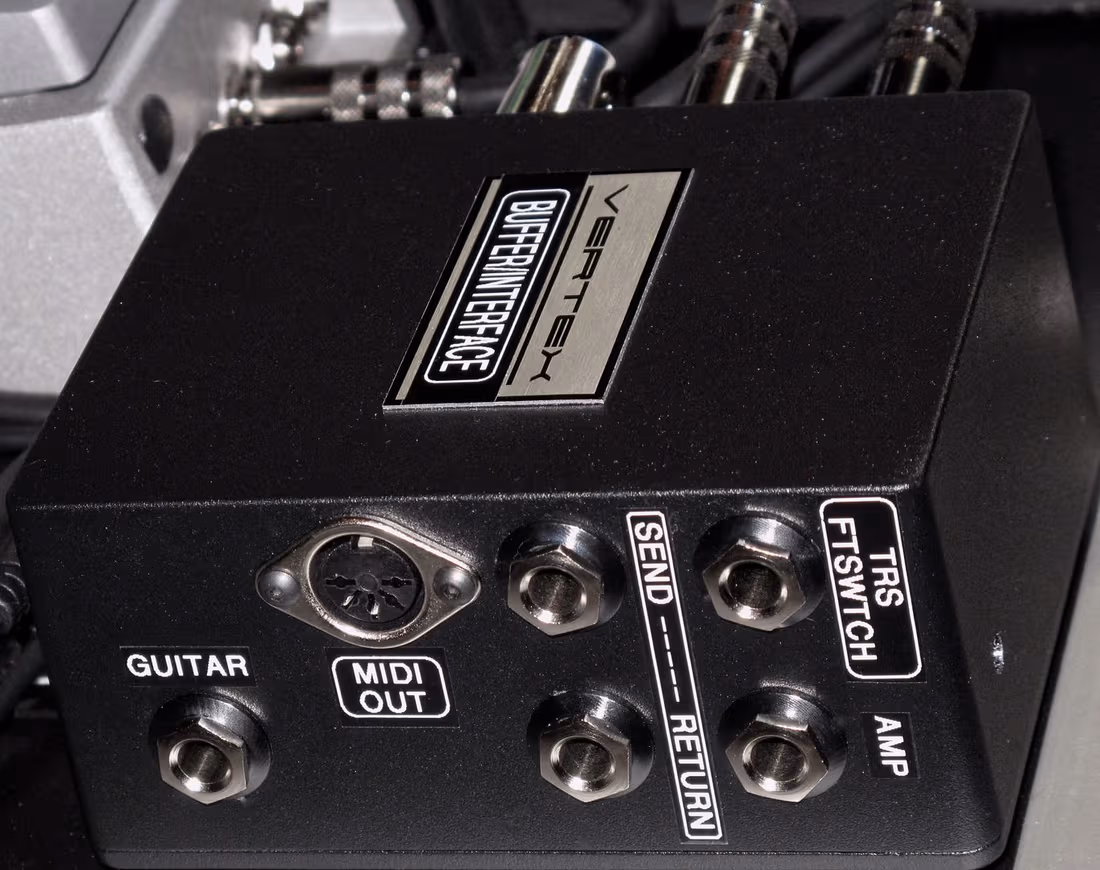

INTERFACE

Vertex Dual Buffer (single input and output buffer), MIDI I/O, TRS I/O (for amp footswitch), Switchable Effects Loop (to assign the Volume, Delay, and Reverb pedals to either the effects loop OR in front of the preamp with all of the other pedals).

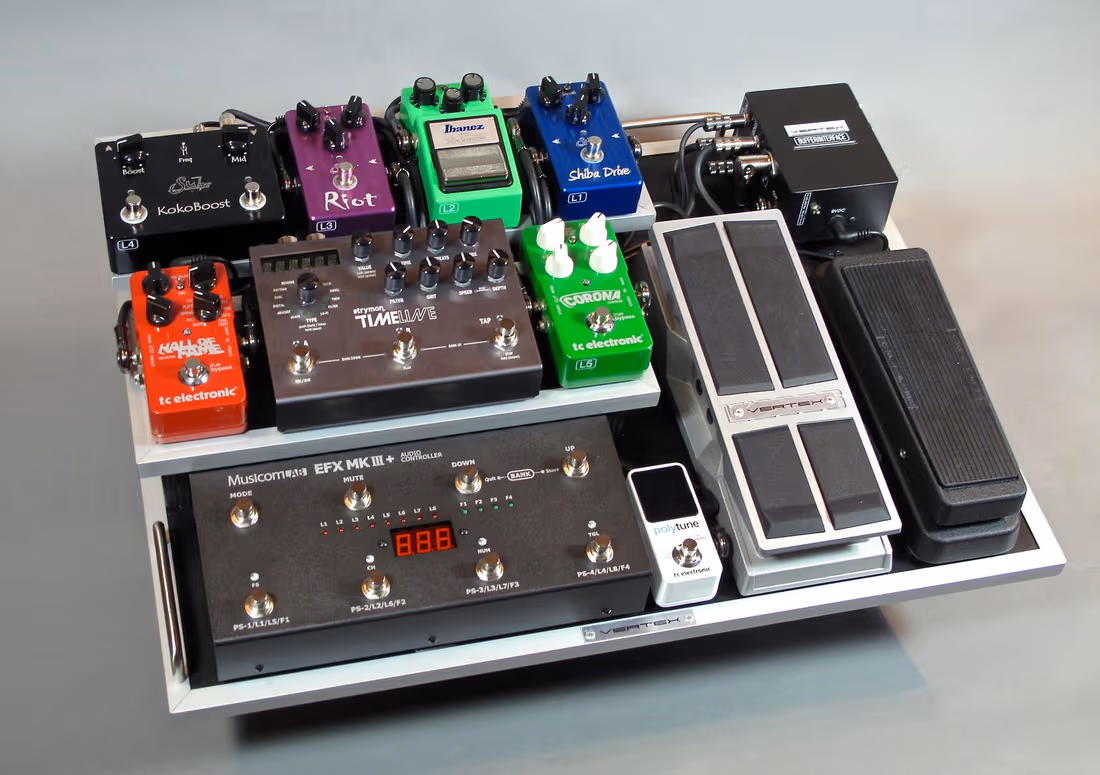

Zoom in (real dimensions: 1024 x 810)Image

CABLE

Vertex Small Diameter Instrument Cable

CONNECTORS

Vertex Pancake, Straight (TS and TRS), and Right Angle
Switchcraft 5-pin DIN (MIDI)
Switchcraft 380
Switchcraft 1/8" (TRS)

POWER SUPPLY

Voodoo Lab Pedal Power Digital
Voodoo Lab Pedal Power 2+

SIGNAL PATH

PREAMP

Interface (input buffer), Cry Baby Classic Wah

MUSICOM LAB EFX MKIII
Loop 1 - Suhr Shiba Drive
Loop 2 - Keeley Modified TS-9
Loop 3 - Suhr Riot
Loop 4 - Suhr Koko Boost (with selectable functions assigned to Musicom F1/F2)
Tuner Out - T.C. Electronic Polytune Mini
Loop 5 - T.C. Electronic Cornoa Chorus
Loop 6 - N/A
Loop 7 - N/A
Loop 8 - N/A
*F3/F4 are wired out through the interface for amp channel switching via the Musciom.

Interface (output buffer)

EFFECTS LOOP

Vertex Volume Pedal, Strymon Timeline, T.C. Electronic Hall of Fame Reverb

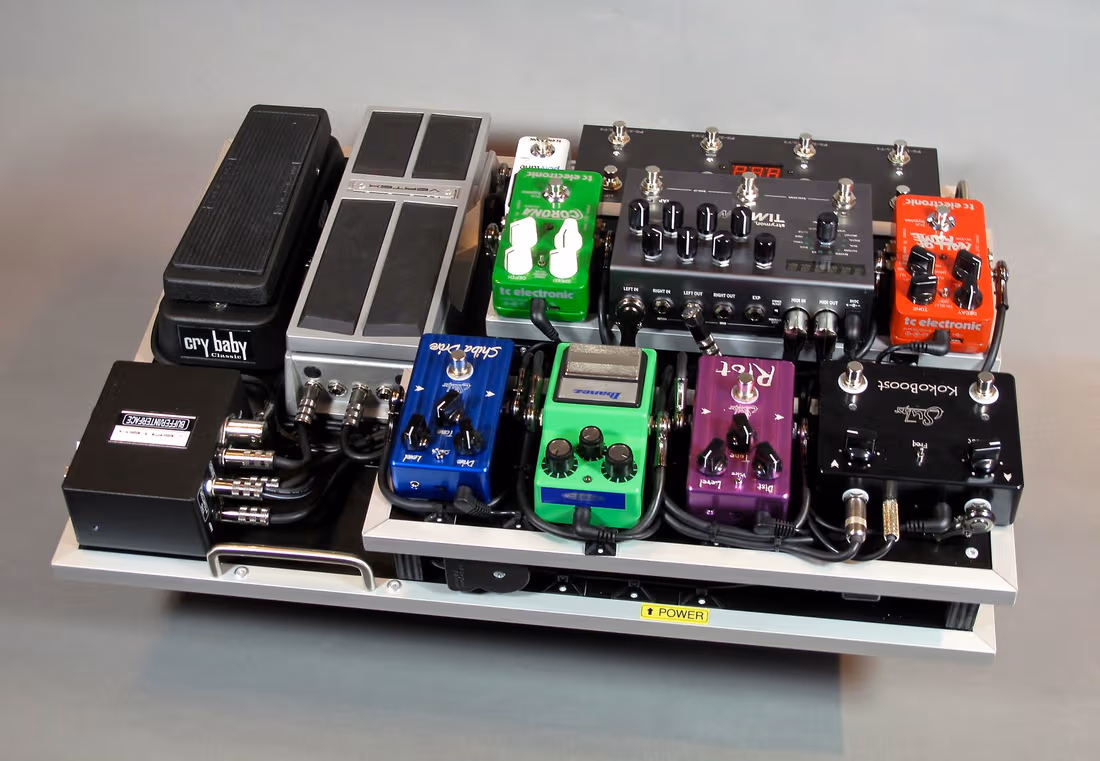

Zoom in (real dimensions: 1024 x 721)Image

Zoom in (real dimensions: 1024 x 708)Image
