Craig Snyder Pedalboard (CR Guitars)

Thursday, April 18, 2013

DIMENSIONS

12" x 17"

WEIGHT

14 lbs. 5 oz.

INTERFACE

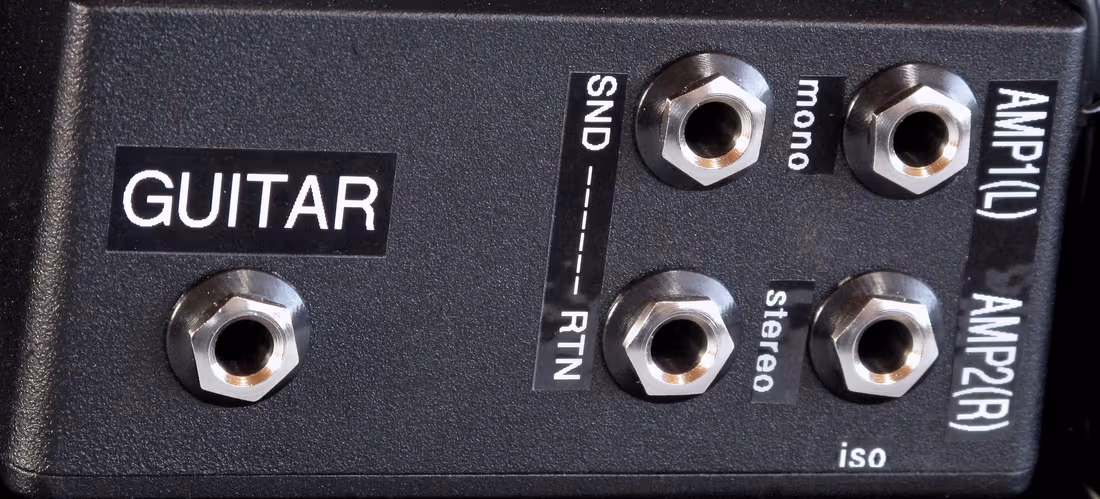

Vertex Tri-Buffer with a passive input for Vertex BC109 Fuzz (single input buffer [wired in after the fuzz] and dual output buffers) with a polarity switch and isolation transformer on the right output for a stereo amplifier set-up. Both L and R outputs sum to MONO when the system is run out of the L out only.

Zoom in (real dimensions: 800 x 362)Image

CABLE

Vertex Instrument Cable (small diameter)

CONNECTORS

Vertex Pancake, R/A, and Straight 1/4" Phone Plugs

Rapco Pancake TRS 1/4" Phone Plug

POWER SUPPLY

Voodoo Lab Pedal Power 2+

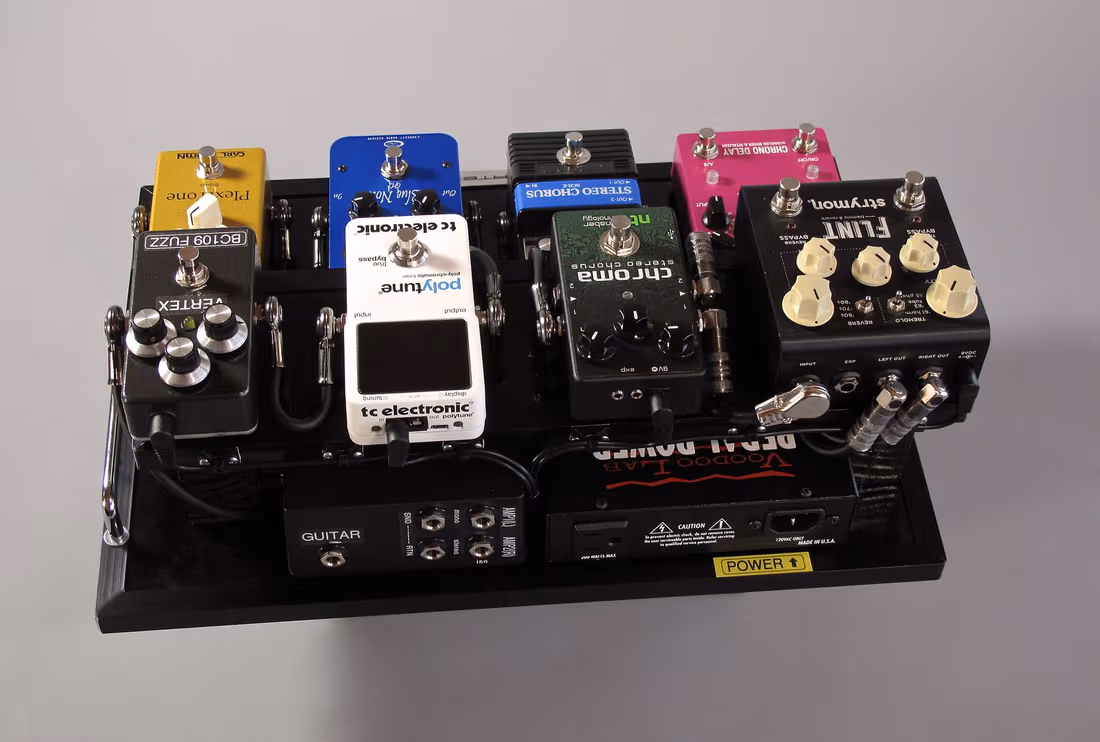

SIGNAL PATH

INTERFACE (passive)
Vertex BC109 Fuzz
T.C. Electronic Polytune
INTERFACE (input buffer)
Carl Martin Plexitone
Rockett Blue Note
INTERFACE (break-out insert point)
Vertex Landau Stereo Chorus
Providence Chorno Delay
Neunaber Stereo Chroma Chorus (stereo)
Strymon Flint (stereo)
INTERFACE (dual output buffers for L and R)
