Dann Huff Pedalboard

SUNDAY, MAY 13, 2012

Here's a rig I did for guitarist Dann Huff.

My buddy Tom Bukovac has been a long time friend and go-to session man for Dann at his recording studio in Nashville. Dann noticed Tom's rigs and really liked how they sounded and wanted to get something for himself along those lines with a few changes.

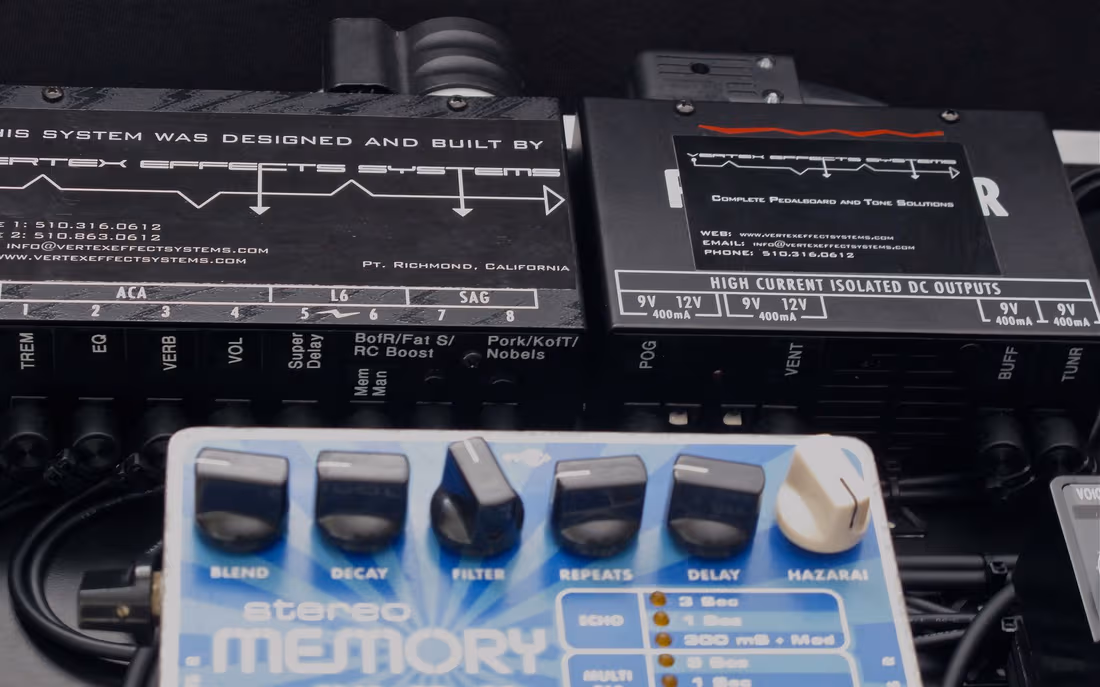

POWER SUPPLY

Voodoo Lab Pedal Power 2+ and Voodoo Lab Pedal Power Digital

Zoom in (real dimensions: 799 x 499)Image

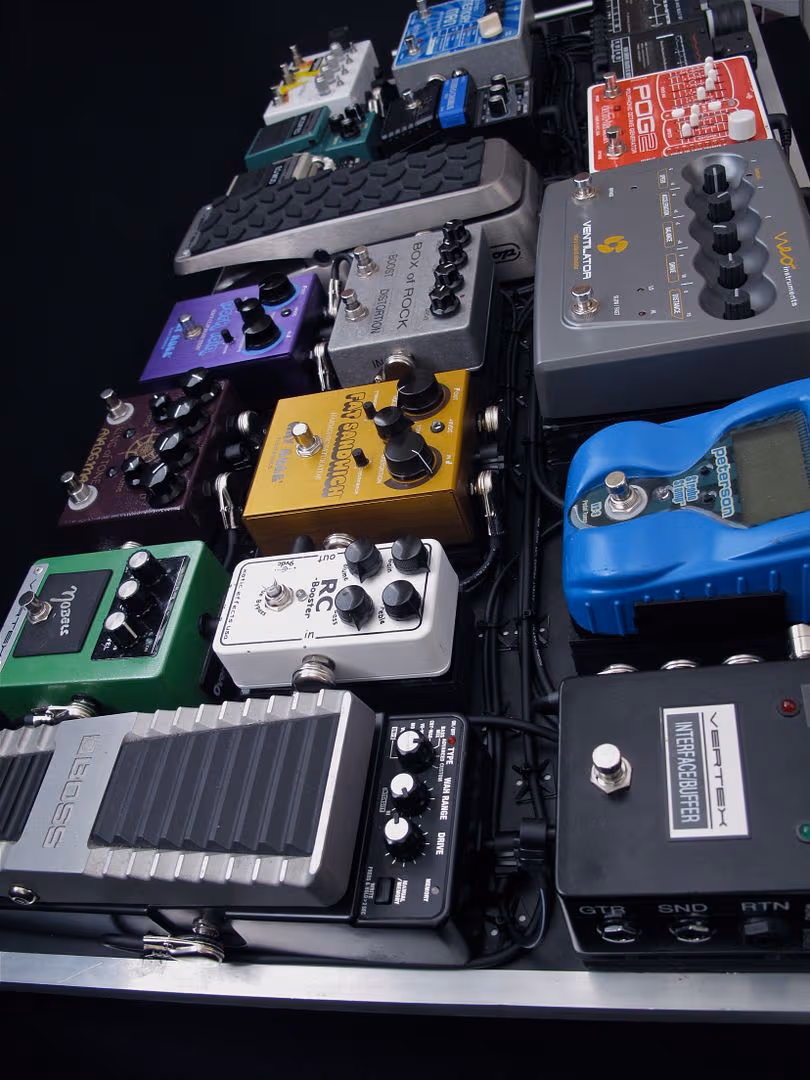

INTERFACE

Vertex Tri-Buffer (input and LEFT output buffer + additional buffer for RIGHT output + Isolation transformer on R output with polarity switch), Effects Break-Out (for external effects to be wired after the distortion pedals and before modulation and time-based pedals), and a Master Bypass to completely bypass the pedalboard and go directly to the amp(s).

Zoom in (real dimensions: 754 x 799)Image

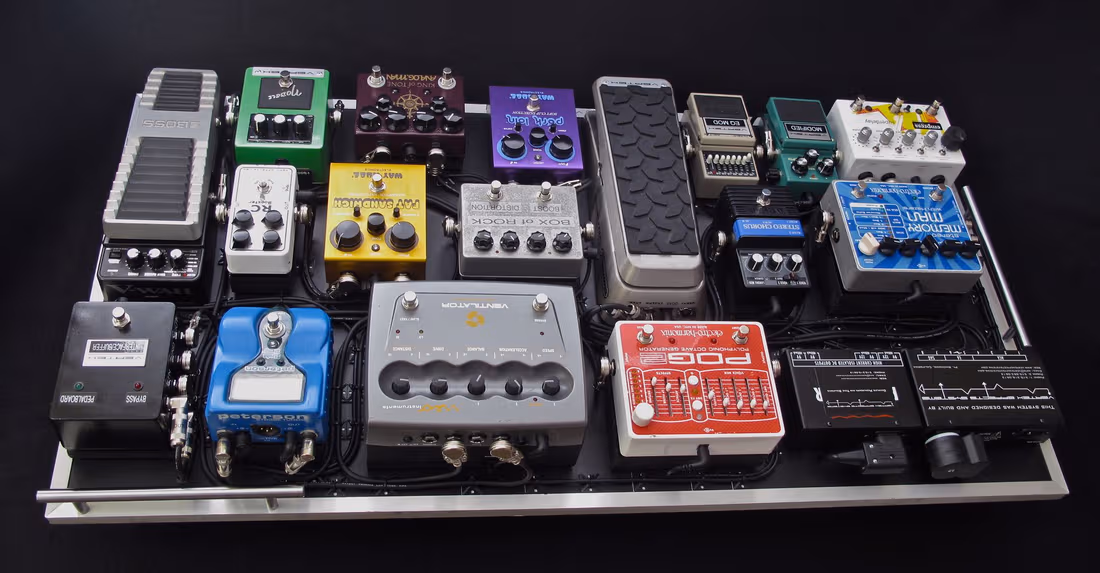

SIGNAL PATH

Interface (input buffer), Petersen Strobostomp Tuner, EHX POG 2, Boss V-Wah, Xotic RC Booster, Way Huge Fat Sandwich, ZVex Box of Rock (re-housed), Nobles ODR-1 (re-housed), Analogman King of Tone, Way Huge Pork Loin, (Effects Break-Out Send/Return), Neo Ventilator, Vertex Modified GE-7 Equalizer, Vertex Modified TR-2 Tremolo, Vertex Landau Modified Arion Chorus, Vertex Modified Dunlop Volume Pedal, Empress Superdelay, Vertex Modified EHX Stereo Memory Man w/Hazari (stereo), Interface (output buffers for L and R outputs)

Zoom in (real dimensions: 799 x 423)Image

Zoom in (real dimensions: 800 x 417)Image

Zoom in (real dimensions: 600 x 800)Image

Zoom in (real dimensions: 600 x 800)Image
