Dave Longo Programmable Pedalboard

Monday, February 10, 2014

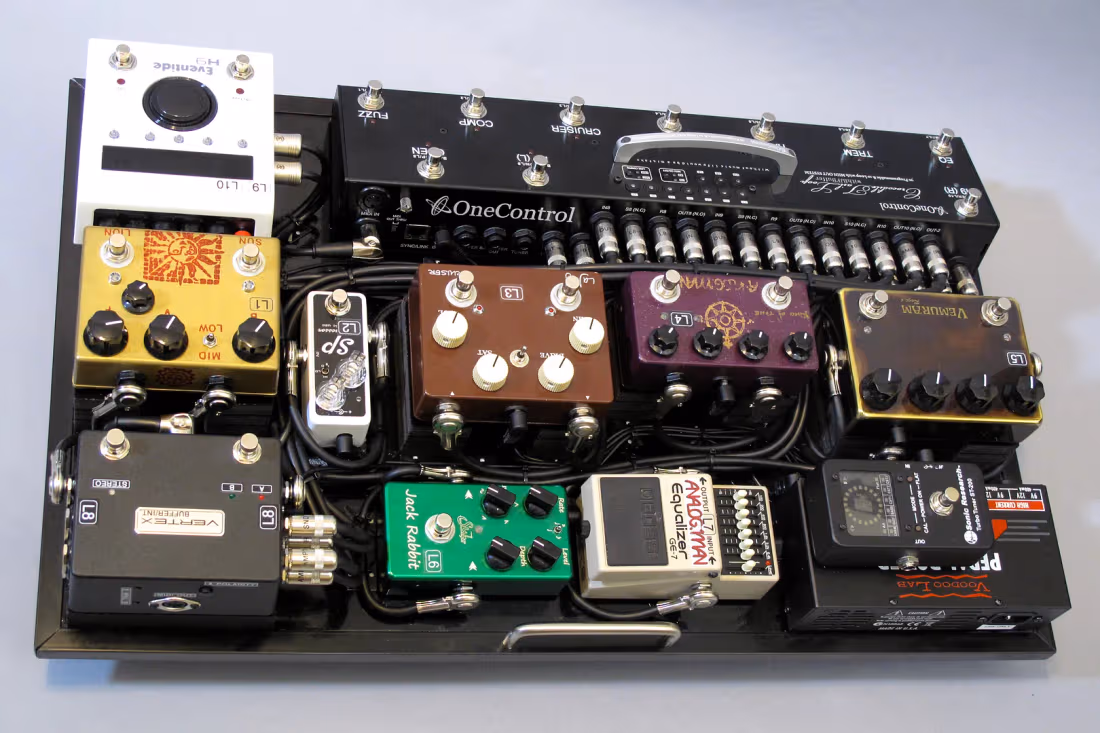

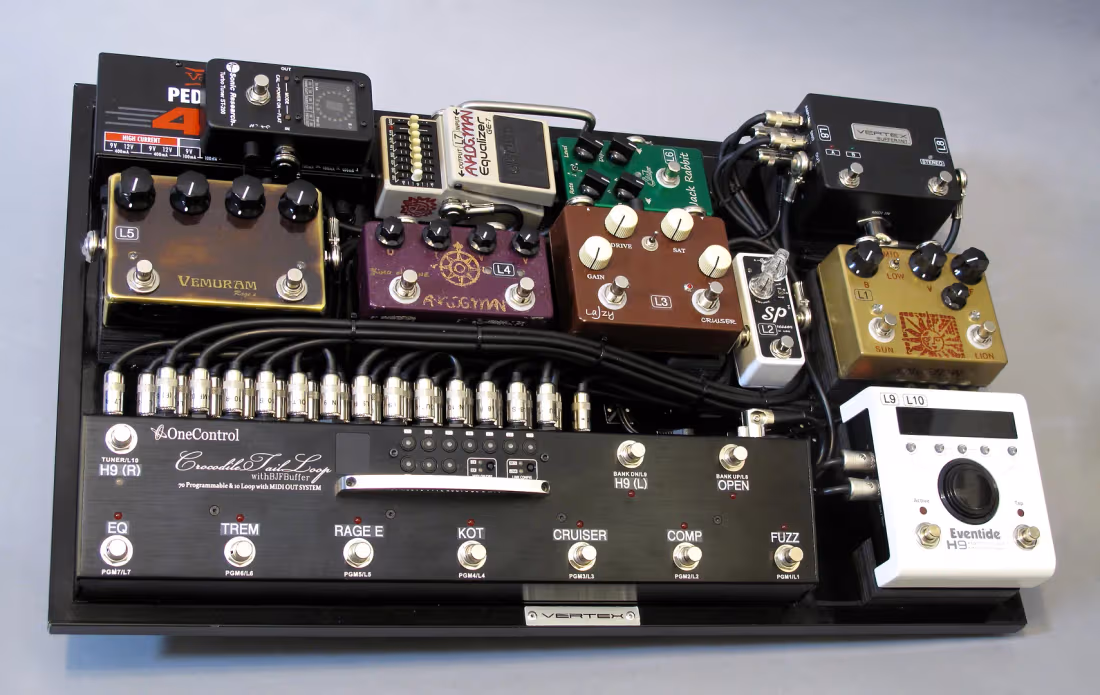

Here's a rig I did for the amazing Dave Longo from Sydney, Austrailia.

SIZE + WEIGHT
15.5" x 25" | 26 lbs. 13 oz.

INTERFACE

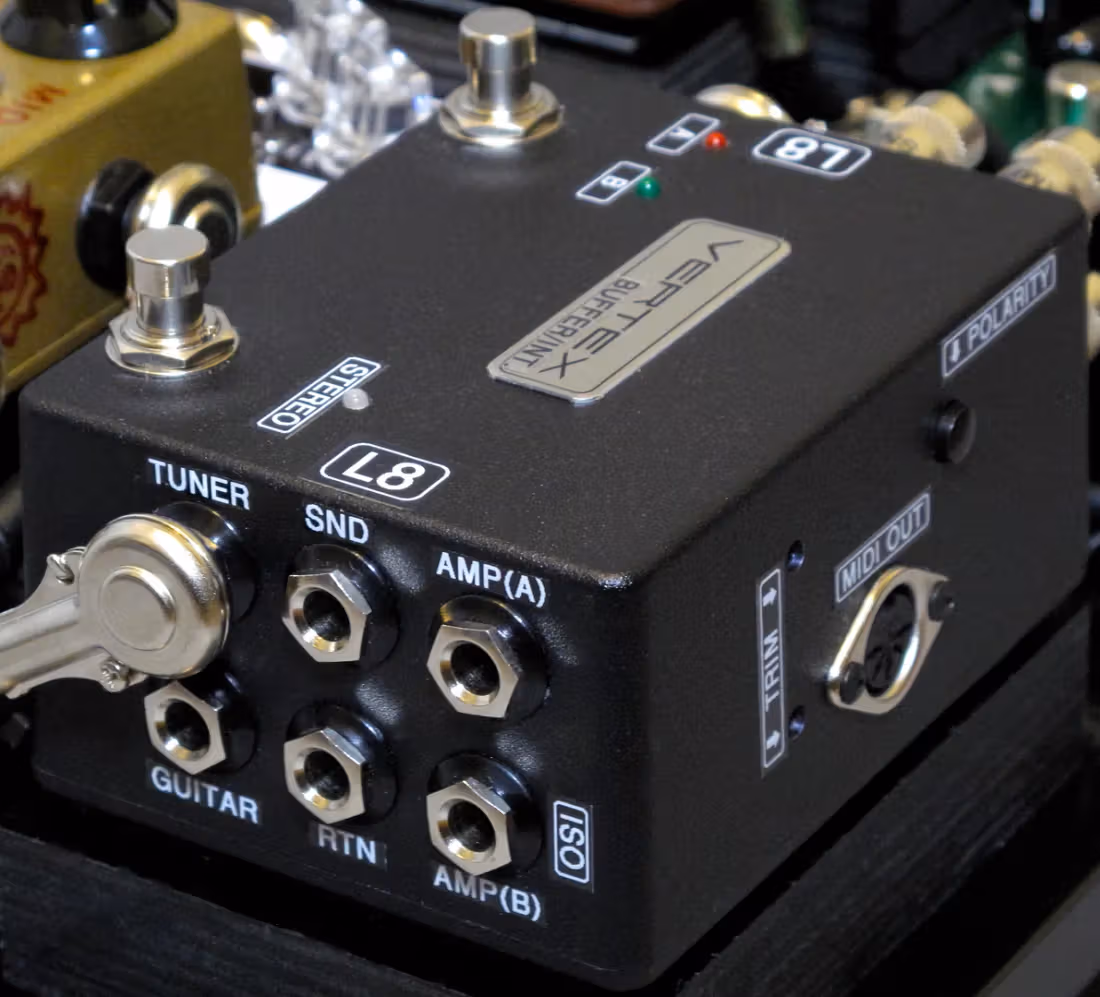

Vertex Quad Buffer (selectable [via toggle single input and tri output buffers).  The system can be used in MONO, A/B between two amps, or in STEREO.  It includes a polarity switch and isolation transformer on the Amp B (R). Both Amp A and Amp B are in MONO (stereo signal is summed), but true STEREO when the stereo switch on the inteface is engaged.  There is also a tuner out split off the input buffer.



CABLE
Vertex Instrument Cable

CONNECTORS
Vertex Pancake 1/4" Connectors

 Vertex R/A 1/4" Connectors

Switchcraft 380 1/4" Connectors

POWER SUPPLY

Voodoo Lab Pedal Power 4x4 (modded for current limiting on OD pedals)

SIGNAL PATH
INTERFACE (swtichable on/off input buffer), One Controll OC-10:

L1 - (Analogman Sunlion), L2 - (Xotic SP Compressor), L3 - (Lazy J Cruiser), L4 - (Analogman KOT), L5 - (Vemuram Rage E), L6 - (Suhr Jack Rabbit Tremolo), L7 - (Analogman GE-7 EQ), L8 - (Open), L9 (Eventide H9 Left), L10 - (Eventide H9 Right)

INTERFACE (tri output buffers for stereo and A/B outs controlled via footswitches on interface)

*Sonic Research ST-200 Turbo Tuner fed by tuner out (split from input buffer)
