Duane Heins Pedalboard

THURSDAY, JULY 11, 2013

DIMENSIONS

12.5" x 37"

WEIGHT

24.1 oz.

INTERFACE

Vertex Tri-Buffer (single input buffer and dual output buffer), effects "break-out" to insert pedals off of the pedalboard between the distortion pedals and modulation pedals, and a polarity switch and isolation transformer on the right output for a stereo amplifier set-up. Both L and R outputs sum to MONO when the system is run out of the L out only.

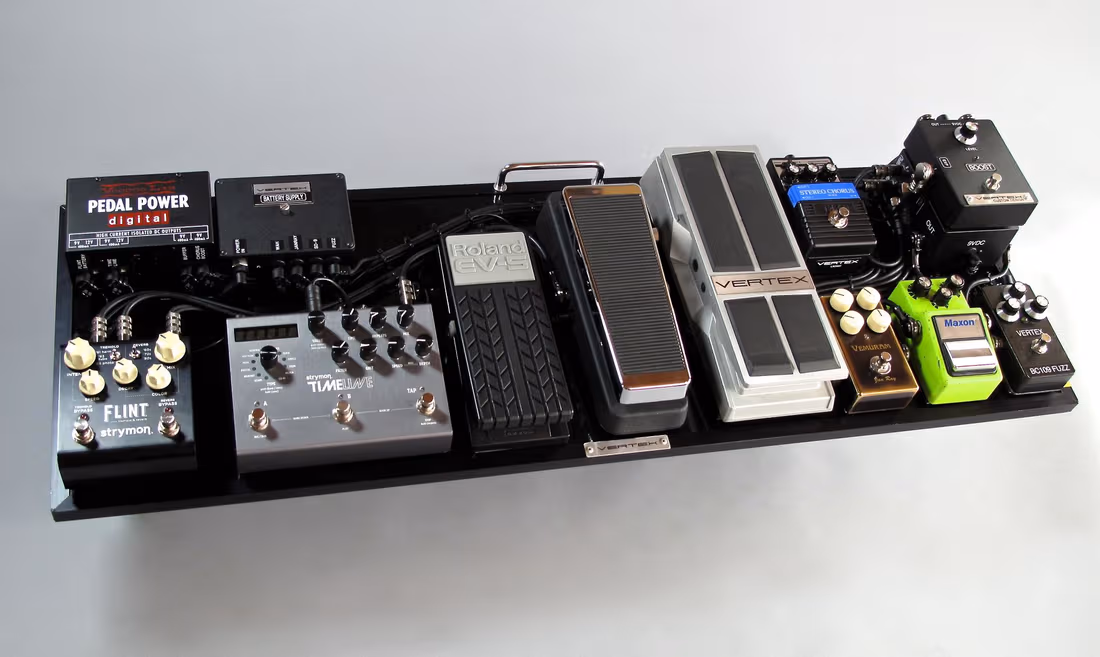

Zoom in (real dimensions: 800 x 331)Image

CABLE

Vertex Instrument Cable (small diameter)

CONNECTORS

Vertex Pancake, R/A, and Straight (TS and TRS)
Rapco Pancake TRS

POWER SUPPLY

Voodoo Lab Pedal Power Digital
Vertex Battery Supply

4 outputs each fed by 4 x 9V batteries and a separate relay powered by the main power supply to turn the batteries on/off. The batteries are only active when the entire pedalboard is powered "ON" at the main power supply so the batteries are not drained when not in use.

*Vertex BC109 Fuzz, Maxon SD-9, Jan Ray Boost, and Vertex Axis Wah are all powered by the Vertex Battery Supply.

SIGNAL PATH

Vertex BC109 Fuzz
INTERFACE (input buffer)
Maxon SD-9
Vemuram Jan Ray Boost
INTERFACE (break-out insert)
Vertex Landau Stereo Chorus
Vertex Boost (paired with Vertex Volume/EXP Pedal)
Vertex Axis Wah
Strymon Timeline (stereo)
Strymon Flint (stereo)
INTERFACE (dual output buffers for L and R)

*Roland EV-5 EXP is paired with the Strymon Timeline.

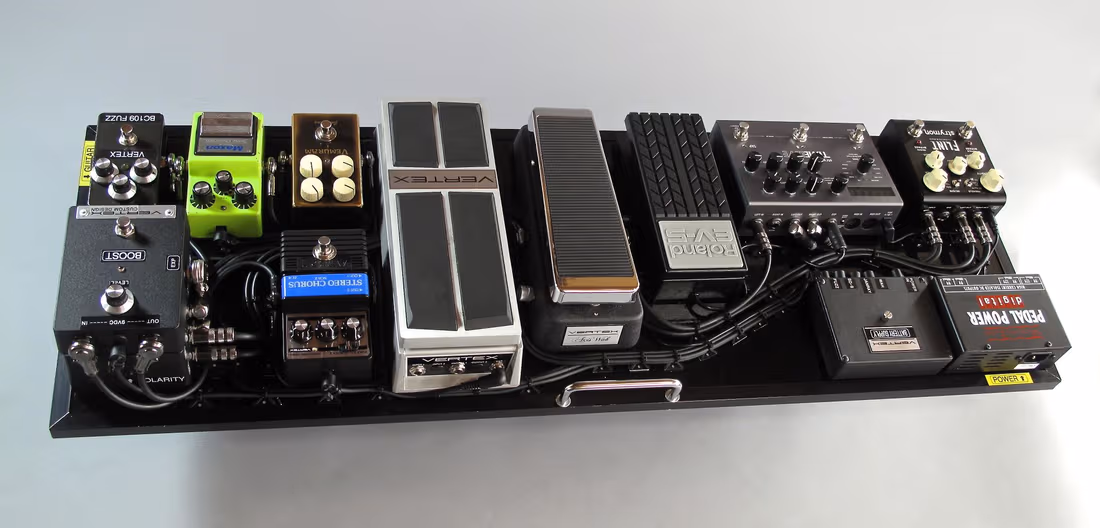

Zoom in (real dimensions: 800 x 477)Image
