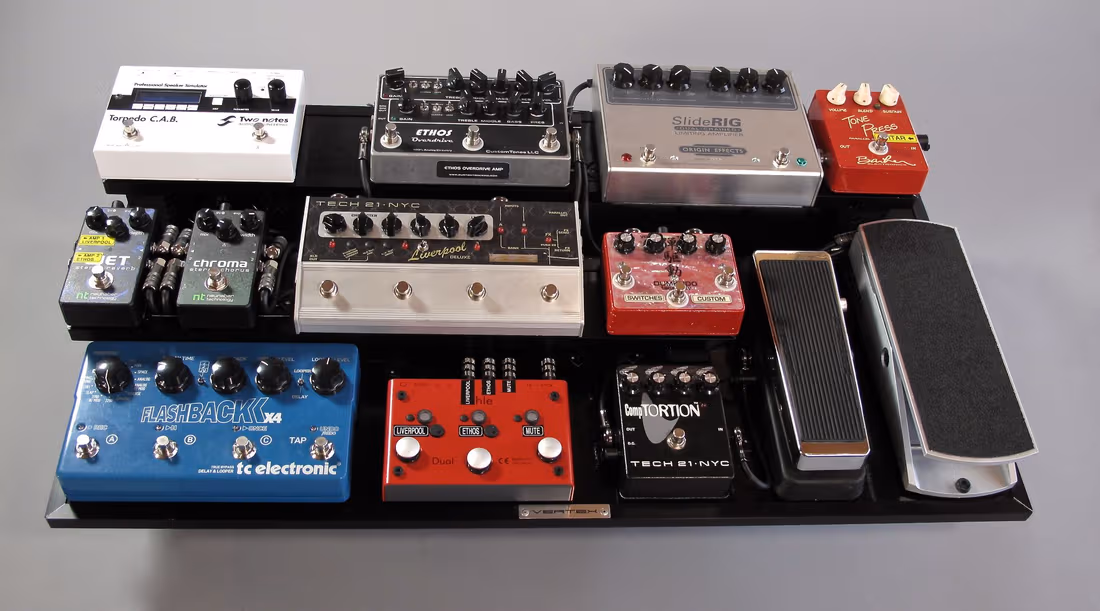

Henry Kaiser Recording Pedalboard

Monday, April 15, 2013

DIMENSIONS

18" x 33"

WEIGHT

38 lbs. 3 oz.

CABLE

Vertex Instrument Cable (small diameter)

CONNECTORS

Vertex Pancake, R/A, and Straight 1/4" Phone Plugs

POWER SUPPLY

Voodoo Lab Pedal Power Mondo

SIGNAL PATH

Barber Tone Press
Origin Effects Slide Rig
Vertex Axis Wah (NOS)
Tech21 Comptortion
Tanabe Dumkudo
Lehle Dual
*(A/B's the signal to two different sets of OD pedals and shared modulation and time effects)

Side A
Tech 21 Liverpool
Neunaber Chorma Chorus (L)
Ernie Ball Stereo Volume Pedal (L)
T.C. Flashback 4X Delay (L)
Neunaber Wet Reverb (L)

Side B
Custom Tones Ethos
Neunaber Chorma Chorus (R)
Ernie Ball Stereo Volume Pedal (R)
T.C. Flashback 4X Delay (R)
Neunaber Wet Reverb (R)

Two Notes Audio TORPEDO
*(Not wired on the pedalboard. Will be patched in as needed for recording purposes)
