Fully Loaded Worship Rig

FRIDAY, FEBRUARY 7, 2014

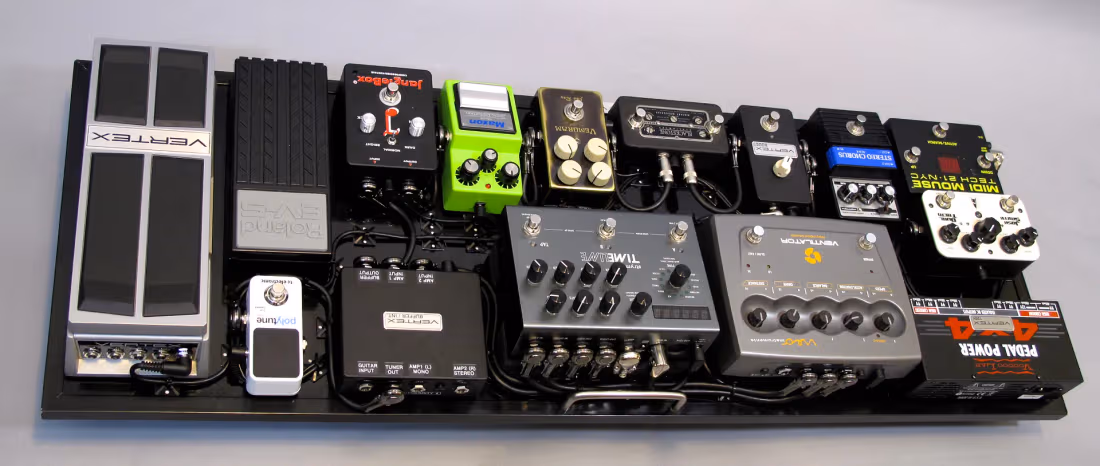

Here's a worship rig I did for my buddy Joe Simpson.

SIZE + WEIGHT
13" x 37" | 27 lbs. 15 oz.

INTERFACE
Vertex Tri Buffer (single input and dual ouput buffer) with a polarity switch and isolation transformer on the right output for a stereo amplifier set-up. Both L and R outputs sum to MONO when the system is run out of the L output only.  There is also a tuner out split off the input buffer.

CABLE
Vertex Instrument Cable

CONNECTORS
Vertex Pancake 1/4" Connectors

Switchcraft 380 1/4" Connectors

Rapco Pancake TRS 1/4" Connectors

POWER SUPPLY
Voodoo Lab Pedal Power 4x4 (modded for current limiting on OD pedals)

SIGNAL PATH
INTERFACE (input buffer), Janglebox Compressor, Maxon SD-9, Vemuram Jan Ray, Blackstone, Vertex Boost (ML spec) w/Vertex EXP, Vertex Boost (volume controlled with Vertex EXP), Vertex Landau Stereo Chorus, Rockett Josh Smith Dual Tremolo, Neo Ventilator ((stereo)), Strymon Timeline ((stereo)), INTERFACE ((stereo output buffers))

*T.C. Polytune Mini fed by tuner out (split from input buffer)
