John Scofield Pedalboard

Friday, December 28, 2012

DIMENSIONS

25.5" x 16"

WEIGHT

21 lbs.

INTERFACE

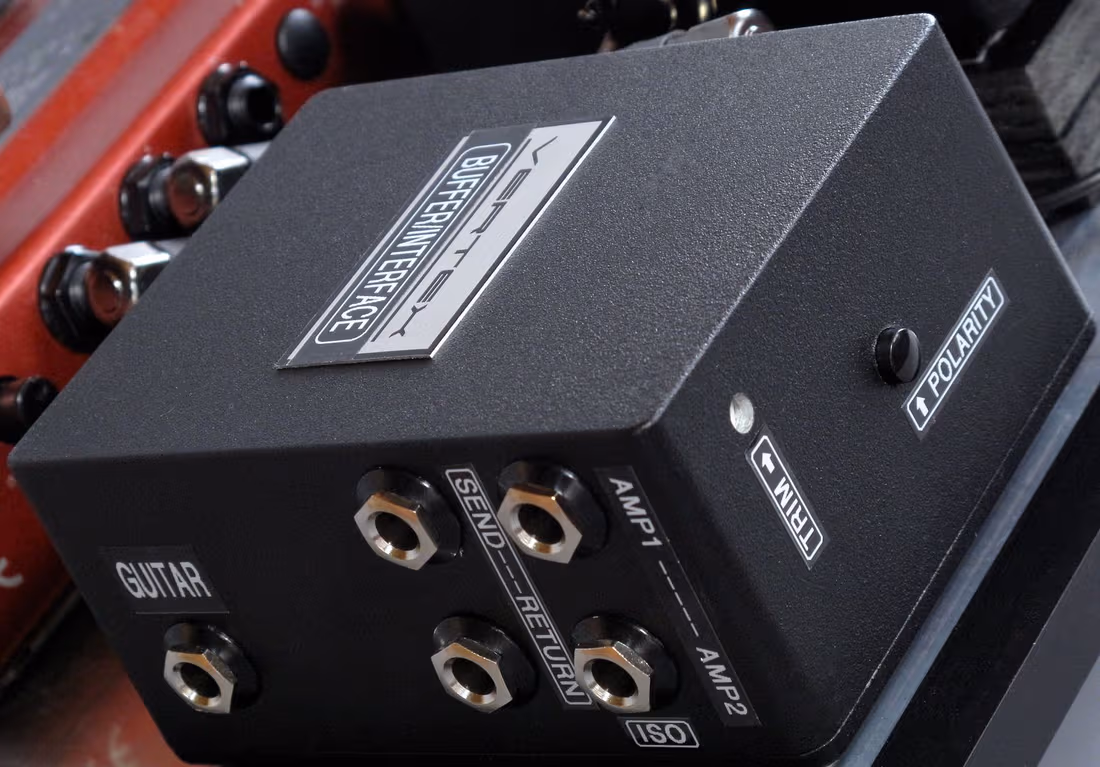

Vertex Dual Buffer (single input buffer, single output buffer/splitter to split the MONO signal to two amplifiers) with a polarity switch and isolation transformer on the output for AMP 2, and effects "break-out" to insert pedals off of the pedalboard between the distortion pedals and modulation pedals.

Zoom in (real dimensions: 1024 x 713)Image

CABLE

Vertex Small Diameter Instrument Cable

CONNECTORS

Vertex Pancake and Right Angle 1/4" Connectors

POWER SUPPLY

CIOKS AC-10

SIGNAL PATH

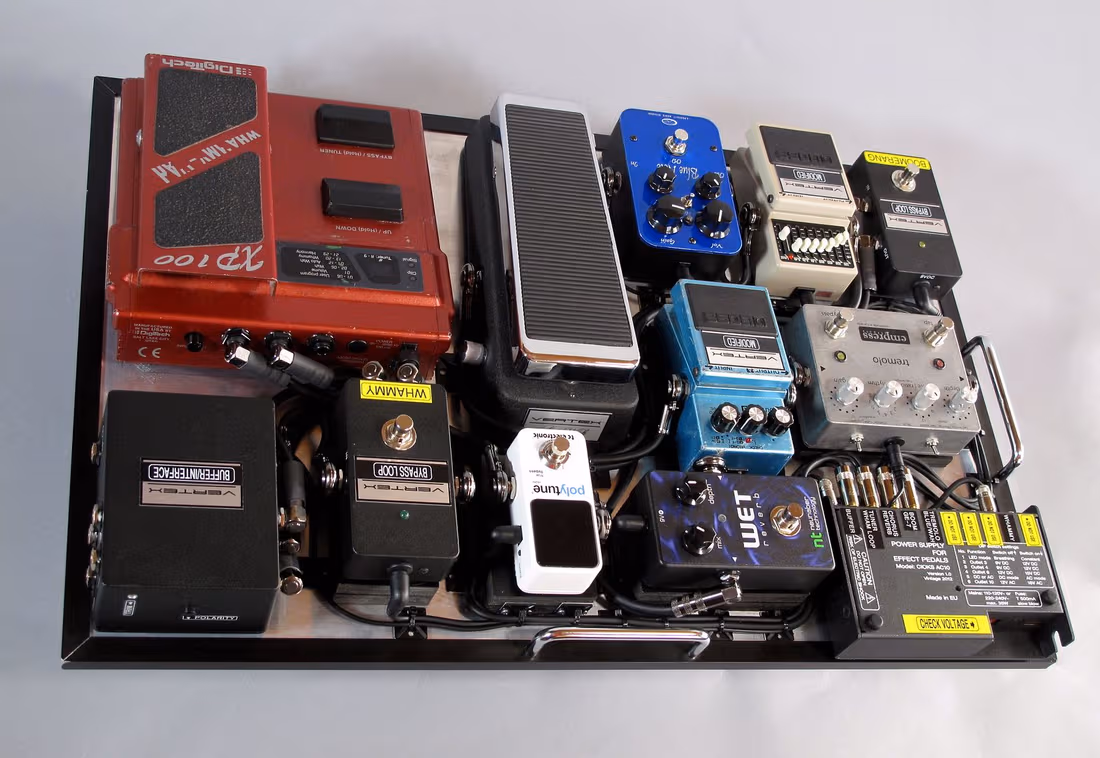

INTERFACE (input buffer), Vertex True Bypass Loop (Digitech Whammy XP100), T.C. Electronic Polytune Mini, Vertex Axis Wah, Rockett Blue Note, Vertex Modified GE-7 Equalizer, INTERFACE (break-out insert), Vertex Modified CE-3 Chorus, Neunaber Technologies Mono WET Reverb, Vertex True Bypass Loop (Boomerang Rang Plus), INTERFACE (single output buffer/splitter, splitting MONO signal to two amplifiers)

NOTES

* Boomerang Rang Plus is on the floor, off of the pedalboard and is brought in/out of the signal path by way of the Vertex True Bypass Loop.

* Vertex Modified GE-7 Equalizer is modified for greater transparency, quieter operation, and more emphasis on the upper mid-range and highs to use as more of a treble booster. Also modified for true bypass.

* Vertex Modified CE-3 Chorus is modified for faster speeds, more warble, and fatness to achieve more of a Leslie emulating quality. Also modified for true bypass.
