Dumble Amp Pedalboard Rig

THURSDAY, DECEMBER 5, 2013

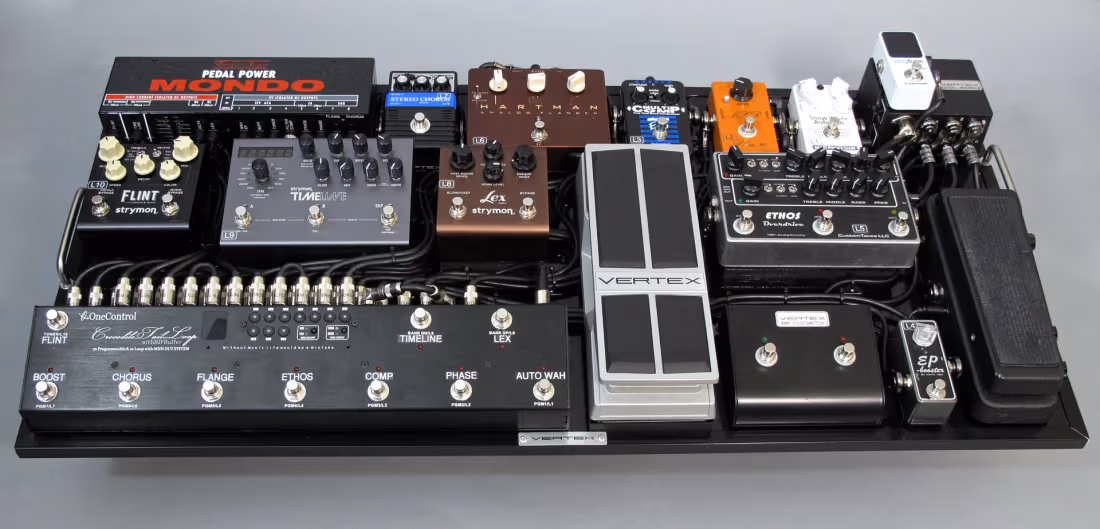

Here's a pedalboard I did for a client back east, who will be using this rig with a variety of Dumble, and Dumble style amplifiers.

SIZE + WEIGHT

18" x 37" | 42 lbs. 12 oz.

INTERFACE

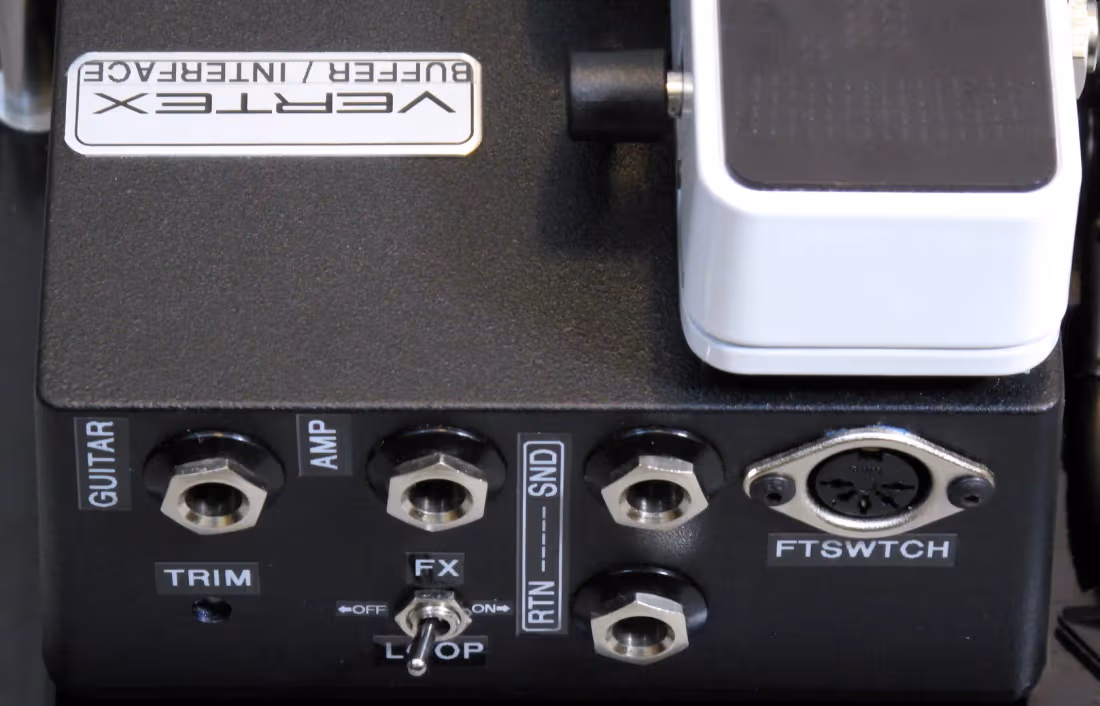

Vertex Dual Buffer (single input and ouput buffer) with a passive input for the Wah, and a selectable effects loop to allow for the Lex, Timeline, and Flint to be run in an amp effects loop, wet/dry, or in series with the rest of the pedals in front of an amp.

CABLE

Vertex Instrument Cable

CONNECTORS

Vertex Pancake and Straight 1/4" Connectors

Switchcraft 380 1/4" Connectors

Switchcraft 226 1/4" Connectors

POWER SUPPLY

Voodoo Lab Pedal Power Mondo

SIGNAL PATH

***in front of amp***

INTERFACE (passive), Area 51 Wah, INTERFACE (input buffer), OC-10 (input):  (L1) Snow White Auto Wah, (L2) Phase 90, (L3) Multicomp, (L4) EP Booster, (L5) Ethos OD, (L6) Hartman Flanger, (L7) Landau Stereo Chorus, OC-10 (output), Vertex Volume Pedal, INTERFACE (output buffer) *Polytune Mini in tuner out

***effects loop/wet amp*** (switchable via toggle switch on interface)

INTERFACE (send), OC-10 (input): (L8) Lex, (L9) Timeline, (L10) Flint, OC-10 (Vertex modified output buffer), INTERFACE (return)
