Josh Smith Pedalboard v.2

MONDAY, SEPTEMBER 16, 2013

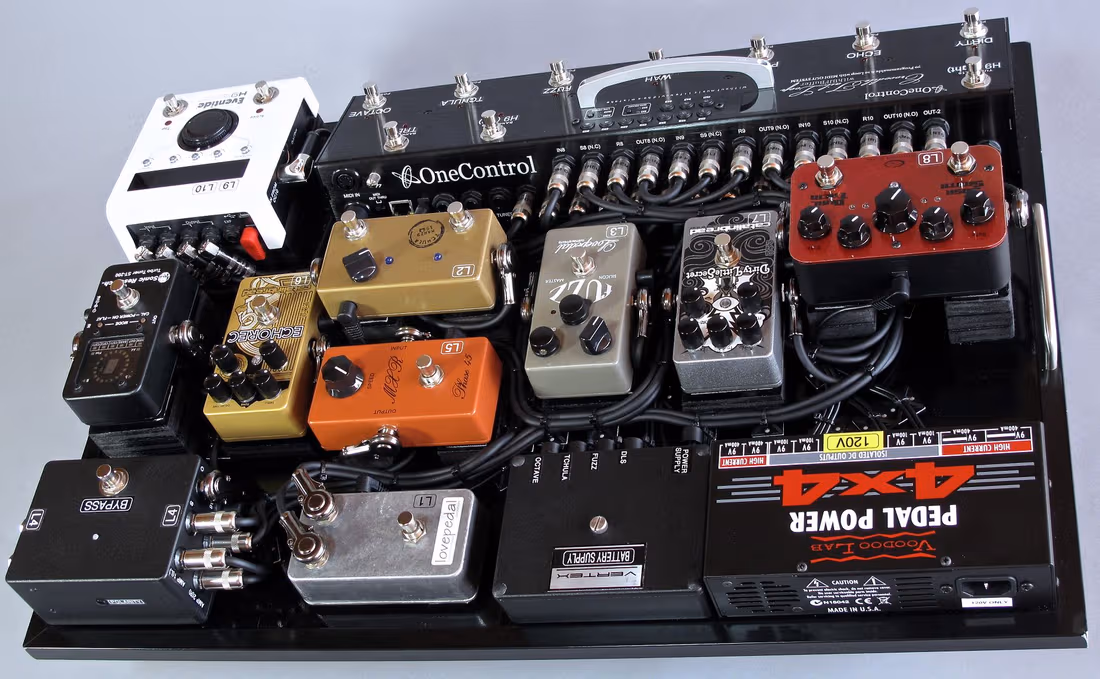

I built this rig for Josh Smith for his solo work and touring with Raphael Saadiq:

www.joshsmithguitar.com

SIZE + WEIGHT
17" x 25"
25 lbs. 7 oz.
INTERFACE

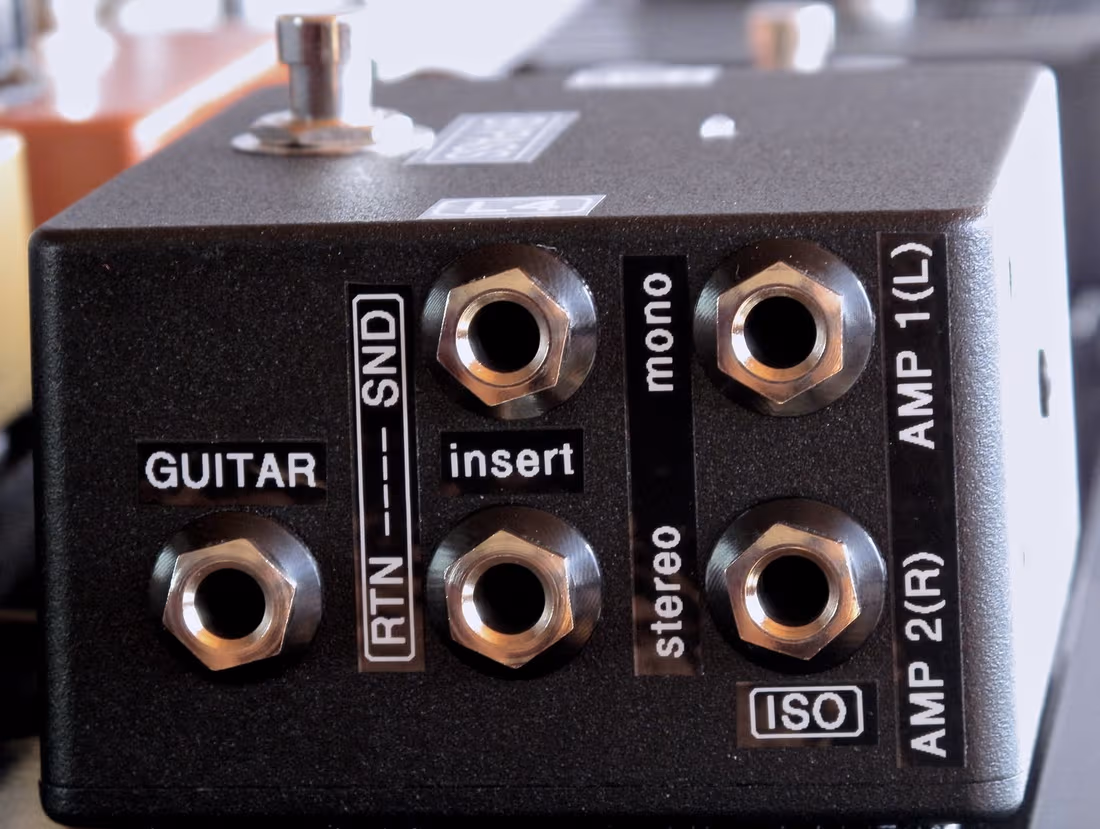

Passive input (no input buffer), effects “break-out” insert for Wah Wah in Loop 4, and dual output buffers for both LEFT and RIGHT outputs with an isolation transformer on the RIGHT output with a polarity switch (to ensure proper polarity when the system is used in stereo).
CABLE
Vertex Instrument Cable
CONNECTORS
Vertex Pancake and R/A 1/4" Connectors
Switchcraft 380 1/4" Connectors
POWER SUPPLY
Voodoo Lab Pedal Power 4x4
Vertex Battery Supply (4x 9V batteries)
(for Octave, Tchula, Fuzz Master, and Dirty Little Secret)
SIGNAL PATH
INTERFACE (passive), Sonic  ST-200 Turbo Tuner, One Control Crocodile Tail Loop OC-10:
L1 – Lovepedal Octave
L2 – Lovepedal Tchula
L3 – Lovepedal Fuzz Master
L4 – INTERFACE (insert for Vertex Axis Wah off of pedalboard)
L5 – MXR Phase 45
L6 – Catalinbread Echorec
L7 – Catalinbread Dirty Little Secret
L8 – Rockett Josh Smith Dual Tremolo
L9 – Eventide H9 (left)
L10 – Eventide H9 (right)
INTERFACE (dual output buffers for L and R)
