Josh Smith Pedalboard

Sunday, October 02, 2011

Here's a pedalboard we just updated for my buddy Josh Smith:

http://www.joshsmithguitar.com

Josh needed a little clean up/update from his old board after a year of touring with Raphael Saadiq. Josh was using the rig throughout the LA Amp Show this weekend at the Morgan Amplification booth.

INTERFACE

Passive Input (for fuzz), Break-Out Insert SND/RTN (to insert Wah or other off-board effects in the middle of the signal path - an input buffer is wired on the return), Stereo Outputs (with dual buffers on each outputs and an isolation transformer on one of the outputs to avid any grounding issues).

POWER SUPPLY

Voodoo Lab Pedal Power ISO 5

ORDER OF EFFECTS

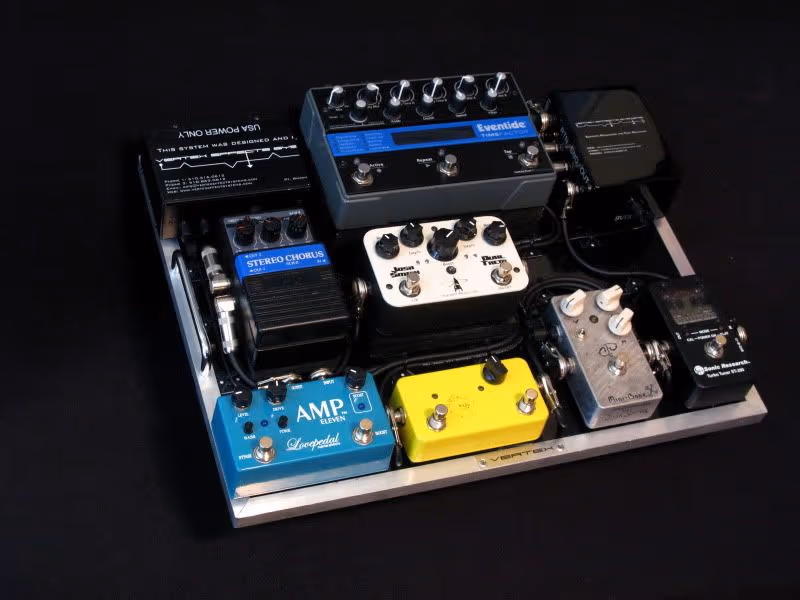

Interface (passive), Sonic Research Turbo Tuner, Lovepedal Tchula, PTD Mini-Bone Fuzz, Interface (break-out to wah pedal), Lovepedal Amp Eleven, Rockett Josh Smith Dual Tremolo, Arion SCH-Z (stereo), Eventide Time Factor (stereo), Interface (dual output buffers with isolation transformer on one output)
