Kirk Fletcher Pedalboard

Sunday, August 12, 2012

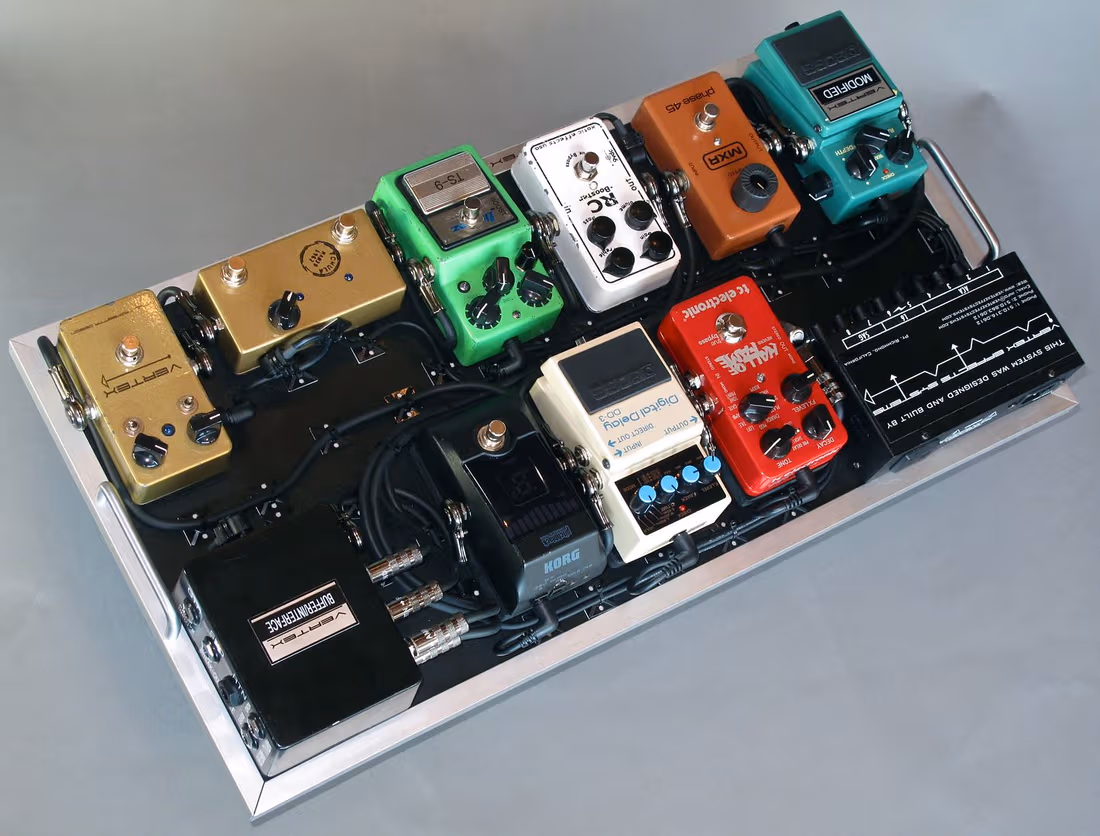

Here is a pedalboard that I did for Kirk Fletcher.

For the last two years, Kirk has been using a larger pedalboard that I built for him, however he was finding that with frequent trips to Europe and smaller sit-in gigs around town, that having a pedalboard with everything on it wasn't very practical to transport.

This pedalboard is smaller and incorporates some of the same pedals from the previous pedalboard, but also a few new ones based on Kirk's requests.

BEFORE (28" x 16") ---------------------------------------------------------------------------------------- AFTER (23" x 12")

Zoom in (real dimensions: 1280 x 434)Image

INTERFACE

Passive Input (no input buffer), Effects Break-Out (to add in effects off the pedalboard between the gain pedals and modulation/time-based pedals), Stereo Outputs (L and R outputs to two amplifiers with isolation transformer on R output and polarity switch)

POWER

Voodoo Lab Pedal Power 2+

CABLE

Vertex Prototype Cable (small diameter)

CONNECTORS

Vertex 1/4" Connectors (R/A, Pancake, and Straight)

CUSTOM MODIFICATIONS

- Vertex Modified TR2 Tremolo (relay-switched true bypass, upgraded components, external level control)
- Vertex Modified TS9 (added Vertex Clean Boost with level control that can be used independently of the TS9)
- MXR Phase 45 (added relay-switch true bypass, LED, and DC power jack with current limiting circuitry)

SIGNAL PATH

Interface (passive), Korg Pitchblack Tuner, Vertex BC109 Fuzz, Lovepedal Tchula, Vertex Modified TS-9, Xotic RC Booster, Interface (break-out), MXR Phase 45, Vertex Modified TR-2 Tremolo, Boss DD-3 Delay, T.C. Electronic Hall of Fame Reverb (stereo), Interface (stereo outs)

Zoom in (real dimensions: 799 x 530)Image

Zoom in (real dimensions: 800 x 608)Image
