Kirk Fletcher Pedalboard (Eros Ramazzotti Tour)

Wednesday, January 30, 2013

DIMENSIONS

23.5" x 12.5"

WEIGHT

16.63 lbs.

INTERFACE

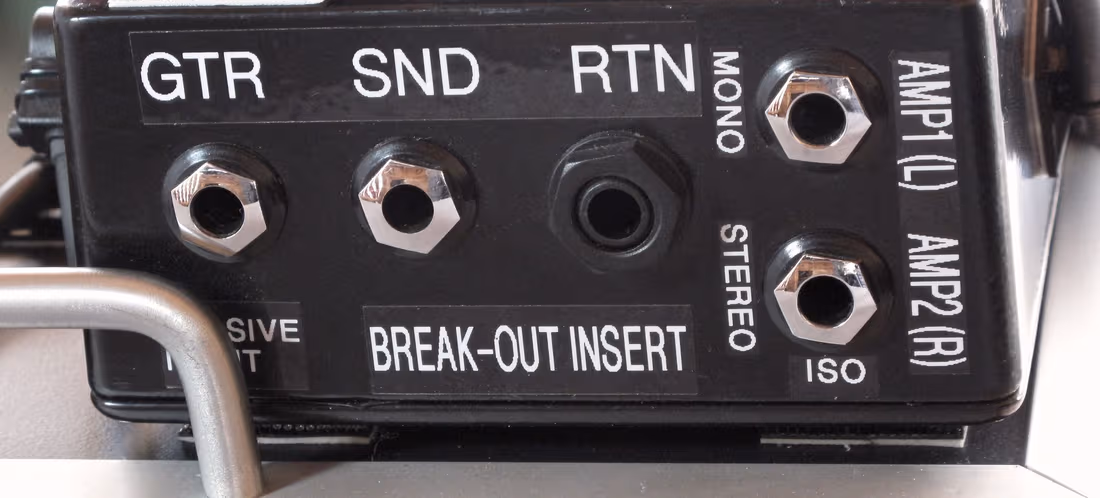

Vertex Dual Output Buffer (passive input, dual output buffer for stereo amplifier set-up) with a polarity switch and isolation transformer (internal) on the right output for a stereo amplifier set-up. Both L and R outputs sum to MONO when the system is run out of the L out only.

Zoom in (real dimensions: 1024 x 463)Image

CABLE

Vertex Instrument Cable (small diameter)

CONNECTORS

Vertex Pancake and Straight

POWER SUPPLY

Vertex Modified Voodoo Lab Pedal Power 2+

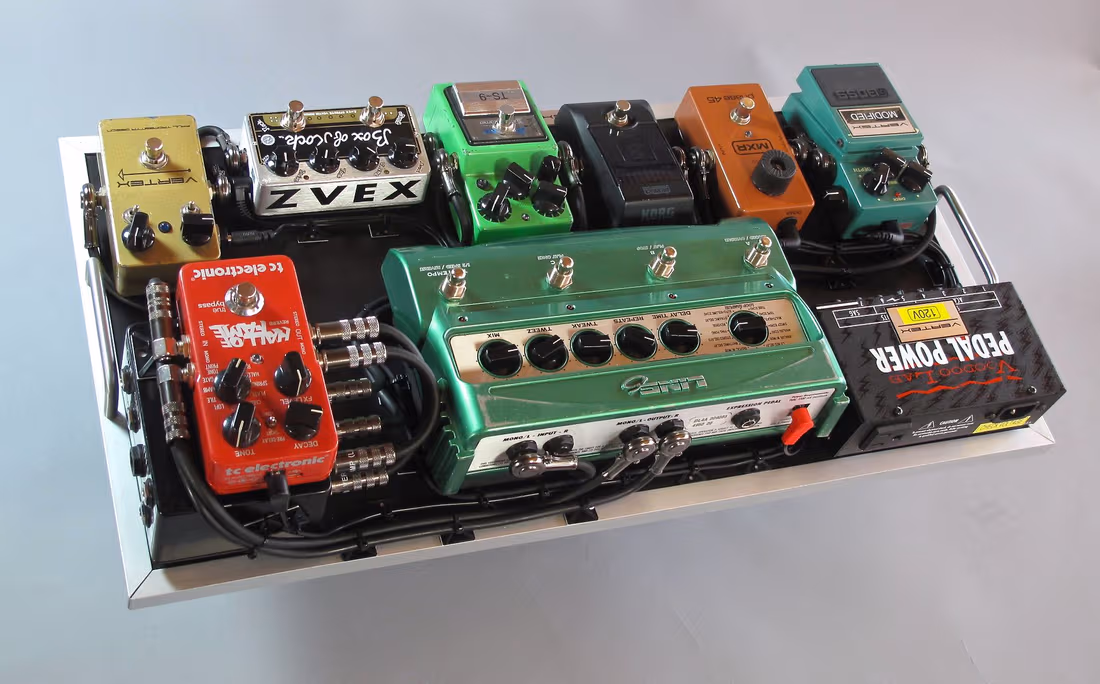

SIGNAL PATH

INTERFACE (passive input)
Vertex BC109 Fuzz
ZVex Box of Rock
Vertex Modified TS-9 + Vertex Boost
Korg Pitch Black Tuner
INTERFACE (break-out insert point for Volume Pedal and/or Wah Wah)
MXR Phase 45 (or substitute for EHX Neo Clone Chorus)
Vertex Modified TR-2 Tremolo
Vertex Modified DL-4 Delay
T.C. Electronic Hall of Fame Reverb
INTERFACE (dual output buffers)
