Landau/Ford-style Pedalboard

Friday, August 24, 2012

INTERFACE

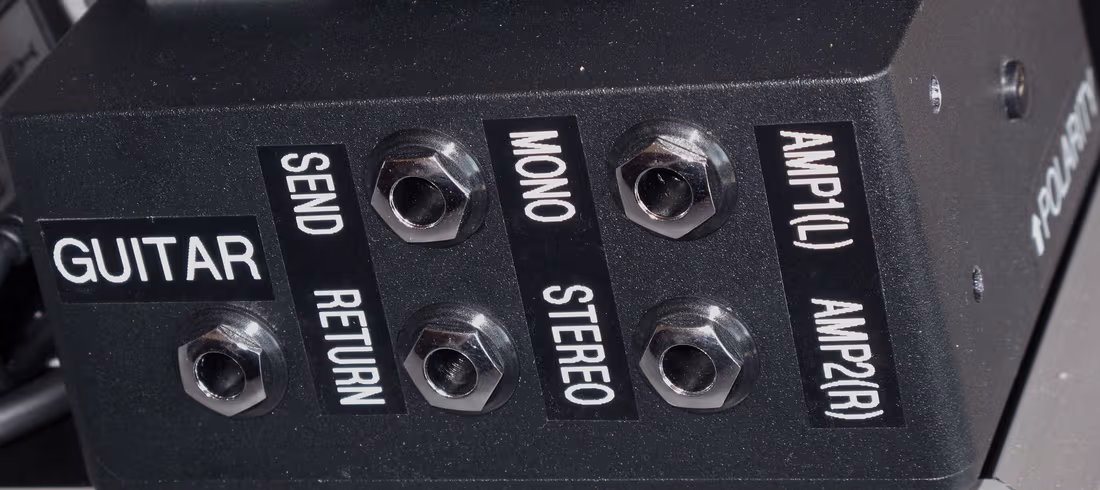

Vertex Tri-Buffer (single input buffer and dual output buffer) with a polarity switch and isolation transformer on the right output for a stereo amplifier set-up, effects break-out to insert pedals off of the pedalboard between the distortion pedals and modulation pedals.

Zoom in (real dimensions: 798 x 356)Image

POWER SUPPLY

Voodoo Lab Pedal Power 2+

SIGNAL PATH

Interface (input buffer), Vertex Axis Wah, Maxon SD-9, Tanabe Dumkudo, Hermida Dual-Boost, Interface (effects break-out), Vertex Modified FV500L (T.C. Polytune Mini in tuner out), Vertex Landau Stereo Chorus Mod (SCH-1), Providence Chrono Delay (with external tap tempo), Neunaber Stereo WET Reverb (in stereo), Interface (output buffers for L and R)

Zoom in (real dimensions: 800 x 600)Image

Zoom in (real dimensions: 799 x 579)Image
