Mark Holley Pedalboard

Friday, February 03, 2012

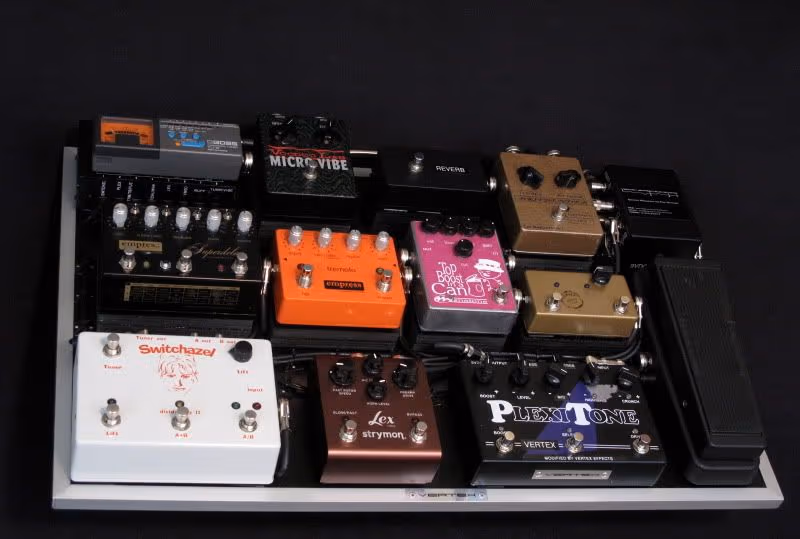

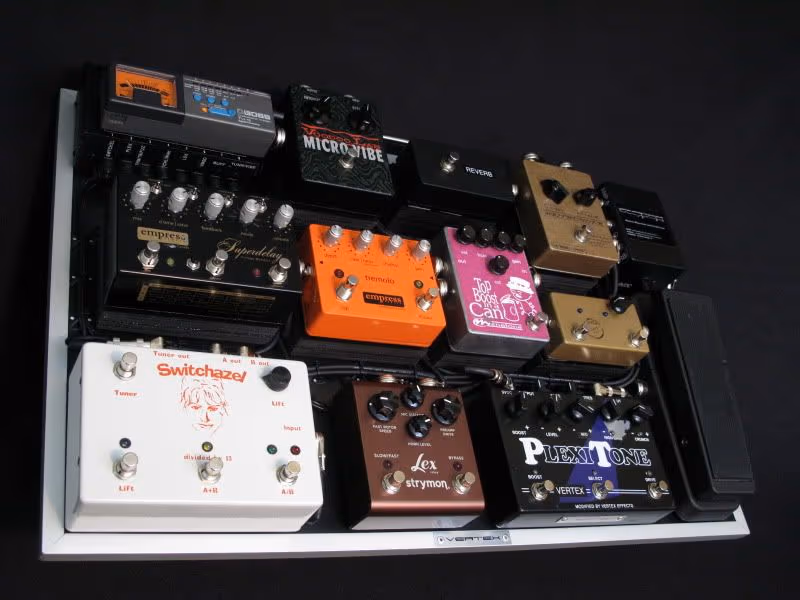

This is a board that I did for guitarist Mark Holley.

Mark is touring with Eric Martin (formerly Mr. Big) and wanted a board that he could use for the tour as well as is other projects.

INTERFACE

Vertex Tri-Buffer (input buffer, two output buffers), Effects Break-Out (to insert effects off of the pedalboard, but in the middle of the signal path between the distortion/overdrive pedals and the modulation pedals), and a Reverb Pass-Through to switch the amp reverb on/off from a footpedal on the pedalboard.

POWER SUPPLY

Voodoo Lab Pedal Power 2+

ORDER OF EFFECTS

Crybaby Classic Wah, MJM Britbender, Lovepedal Tchula, Voodoo Lab Micro Vibe, INTERFACE (input buffer), Menatone Top Boost In A Can, Vertex Plexitone, INTERFACE (effects break-out), Strymon Lex, Empress Tremolo, Empress Vintage Modified Superdelay, /13 Switchazel (A/B + Boost), INTERFACE (dual output buffers for amplifiers A and B)

*Reverb footpedal feeds trough the interface and switches the amp reverb on/off for a Divided by 13 amp that is part of the A/B set-up.

*Boss TU-12 tuner is run out of the Switchazel.
