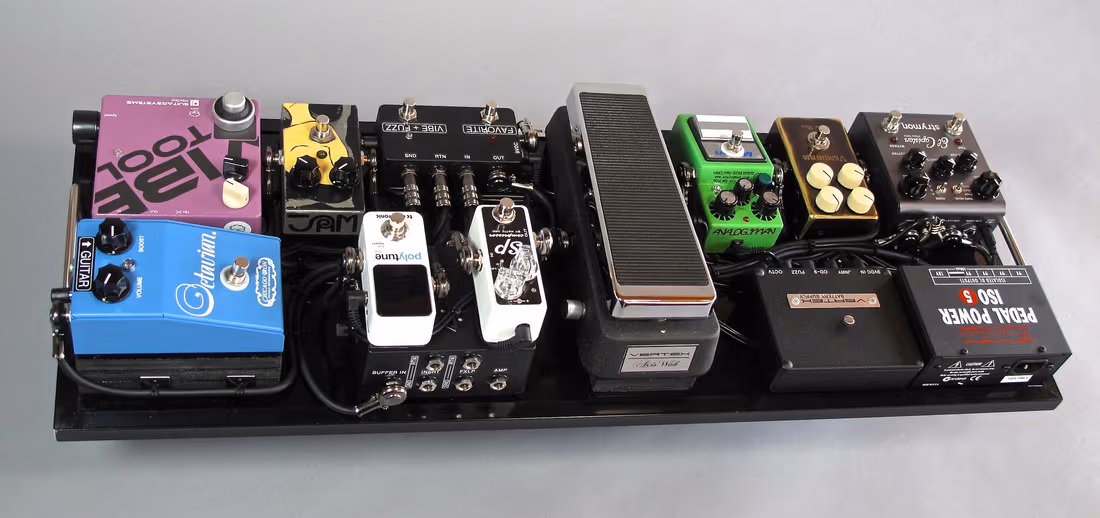

Michael Colton Pedalboard

Friday, August 16, 2013

SIZE + WEIGHT

11" x 30"

22 lbs. 8 oz.

INTERFACE

Vertex Dual Buffer (single input buffer, single output buffer), effects insert "break-out" to patch in a tremolo pedal after the drive pedals, but before time-based (delay) pedals, and a selectable effects loop function to assign the Strymon El Capistan to an effects loop (when using an amp equipped with one), or in series as the last pedal in the signal path when using an amp without an effects loop.

CABLE

Vertex Instrument Cable

CONNECTORS

Vertex Pancake, Straight, and R/A 1/4" Connectors

POWER SUPPLY

Voodoo Lab Pedal Power ISO-5

Vertex Battery Supply (4x 9V batteries)

SIGNAL PATH

***in front of amp

Chicago Iron Octavian

Vertex True Bypass Looper (Lenders Vibe Tool, JAM Fuzz Face)

Vertex Axis Wah

INTERFACE (input buffer)

T.C. Electronics Polytun Mini

Xotic SP Compressor

Analogman Maxon OD-9

Vemuram Jan Ray Boost

INTERFACE (insert break-out)

INTERFACE (output buffer)

***in effects loop (assignable to the front of the amp or effects loop via toggle switch on interface)

Strymon El Capistan
