Mike Eldred Wet/Dry Pedalboard

Wednesday, November 06, 2013

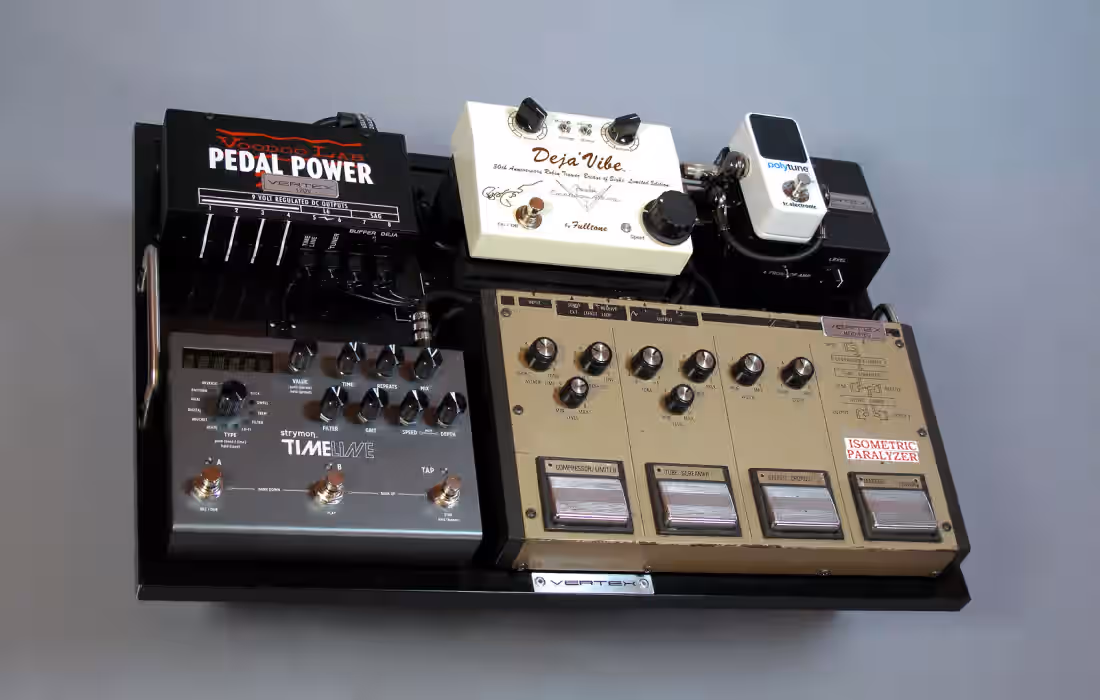

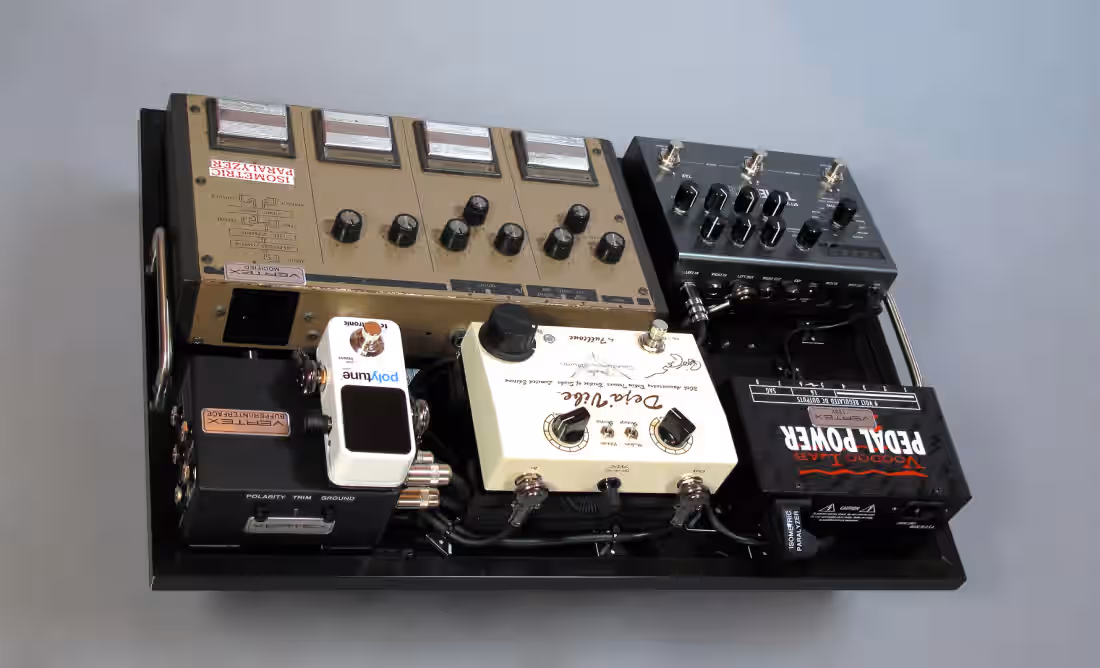

Here's a pedalboard I did for Mike Eldred (Fender Custom Shop) for use with his incredible band the Mike Eldred Trio:

mikeeldredtrio.com

SIZE + WEIGHT

15.5" x 20.5"  |  16 lbs. 0 oz.

INTERFACE

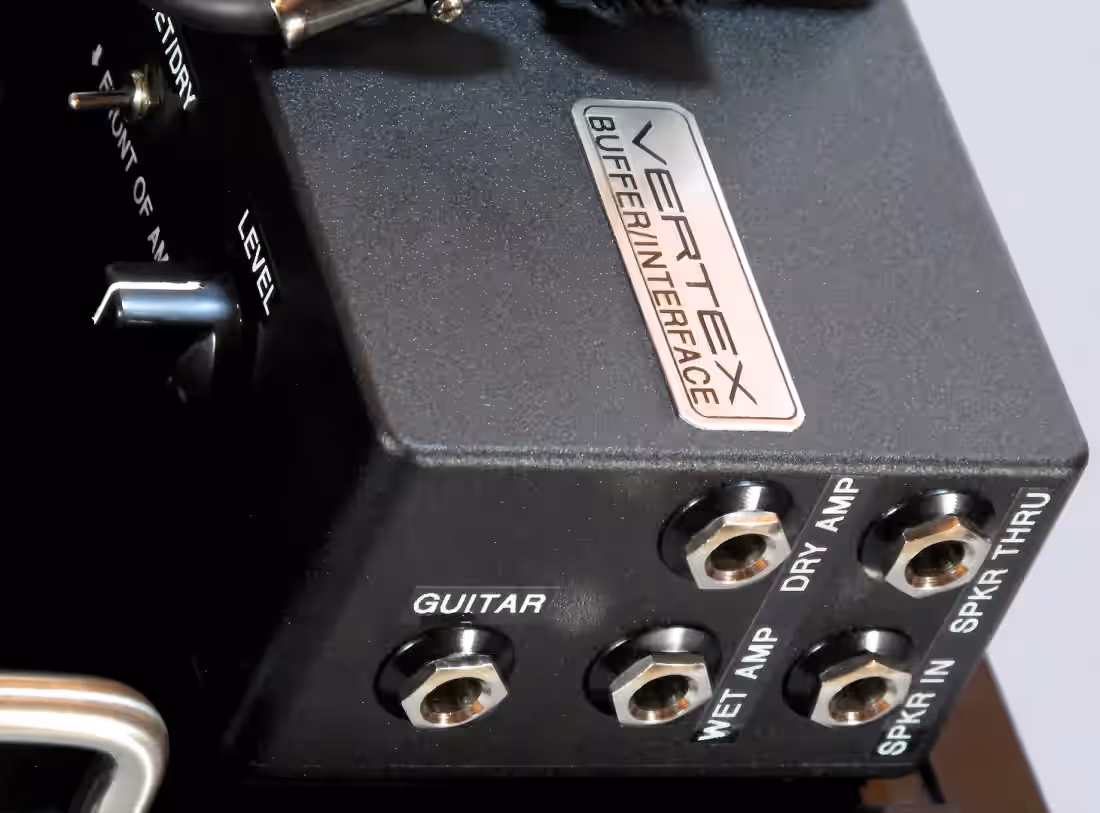

Vertex Dual Buffer (single input and ouput buffer) and a Vertex Custom Line-Out (allowing the system to run wet/dry with the Timeline running wet or with all effects in front of the dry amp alone).  The wet/dry or in front of amp option is selectable via toggle switch on the front of the interface along with a level control for the wet/dry balance and a polarity and ground switch on the rear of the interface.

CABLE

Vertex Instrument Cable

CONNECTORS

Vertex Pancake and Straight 1/4" Connectors

Switchcraft 380 1/4" Connectors

POWER SUPPLY

Vertex Modified Voodoo Lab Pedal Power 2+

SIGNAL PATH

***dry amp***

INTERFACE (input buffer), T.C. Polytune Mini, Fulltone Deja Vibe, Ibanez UE-300 (modified), INTERFACE (output buffer)

***wet amp** (switchable via toggle switch to in-line with dry amp)

INTERFACE (line out), Strymon Timeline, INTERFACE (through to wet amp)
