Philip Savell Pedalboard (The Fall Risk)

Wednesday, March 20, 2013

DIMENSIONS

13" x 38"

WEIGHT

28 lbs. 5 oz.

INTERFACE

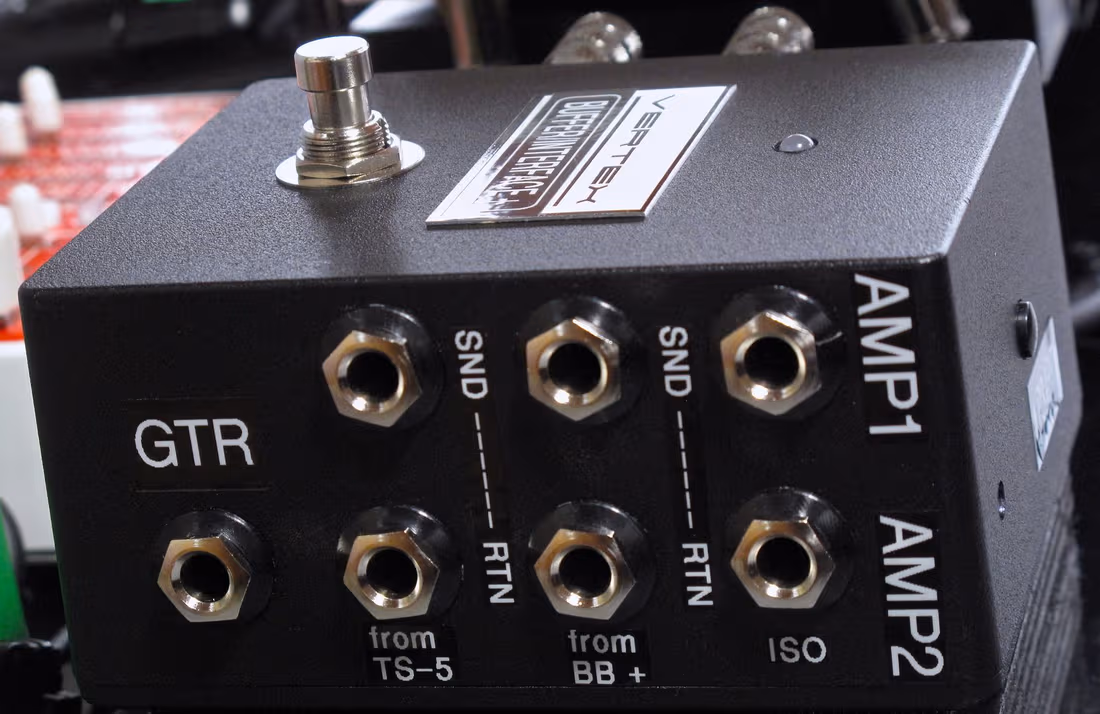

Vertex Dual Buffer (single input buffer, single output buffer/splitter to split the MONO signal to two amplifiers) with a polarity switch and isolation transformer on the output for AMP 2, and two effects "break-outs" to insert pedals off of the pedalboard, following the Ibanez Soundtank TS-5 and Xotic BB+ Plus. There is also master bypass switch to bypass the entire pedalboard, going directly from the guitar input to the output to the amp.

Zoom in (real dimensions: 800 x 519)Image

CABLE

Vertex Instrument Cable (small diameter)

CONNECTORS

Vertex Pancake, R/A, and Straight 1/4" Phone Plugs

POWER SUPPLY

Voodoo Lab Pedal Power Mondo

SIGNAL PATH

INTERFACE (input buffer)
HAZ Mu-Tron III+
MXR Phase 90
Ibanez TS-9
Electro-Harmonix POG 2
Ibanez Soundtank TS-5
INTERFACE (break-out insert)
Electro-Harmonix Qtron
Xotic BB+ Plus
INTERFACE (break-out insert)
Burriss Boostiest II
Boss TU-3 Tuner
Electro-Harmonix Stereo Electric Mistress
Boss DD-3 Delay
Line 6 DL-4 Delay
INTERFACE (output buffer/splitter)

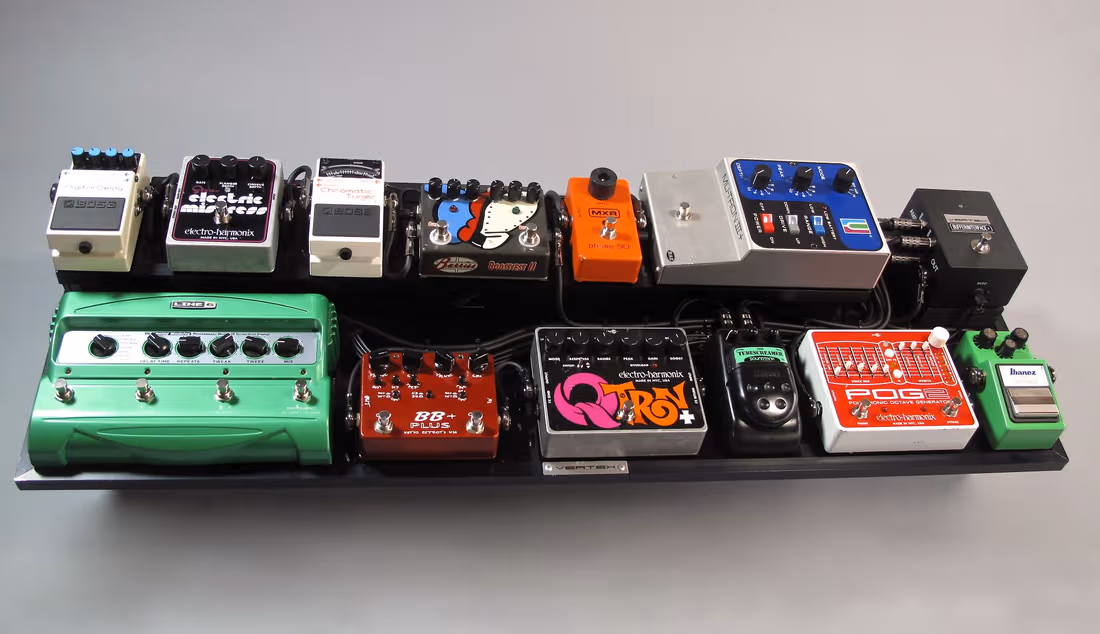

Zoom in (real dimensions: 800 x 461)Image

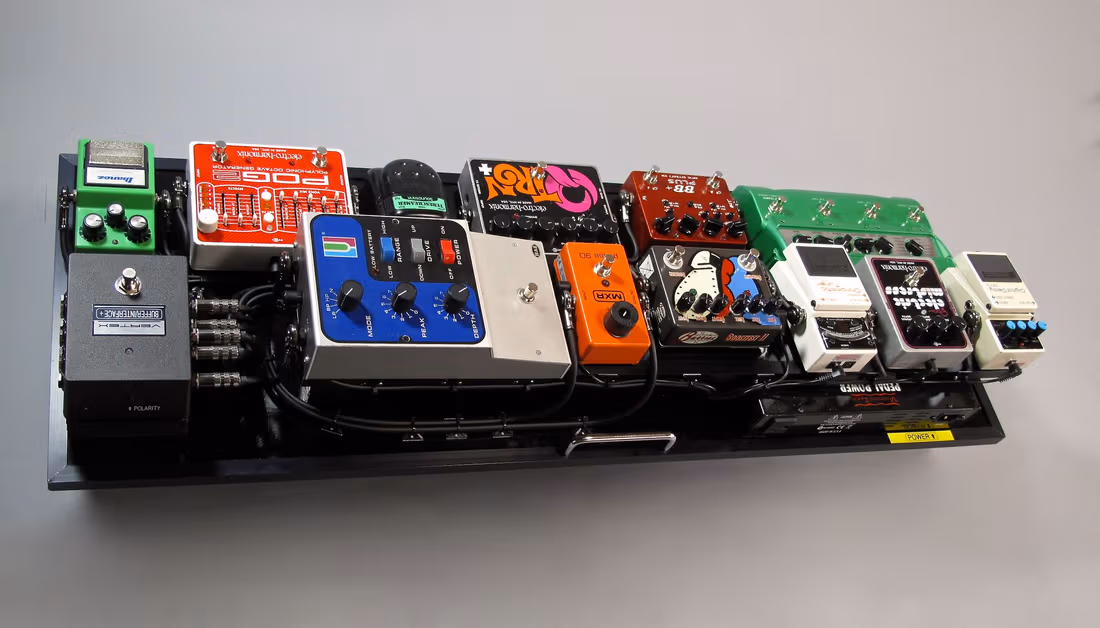

Zoom in (real dimensions: 800 x 456)Image
