Scott Lerner Pedalboard

Wednesday, February 13, 2013

DIMENSIONS

12.5" x 29"

WEIGHT

20.8 lbs.

INTERFACE

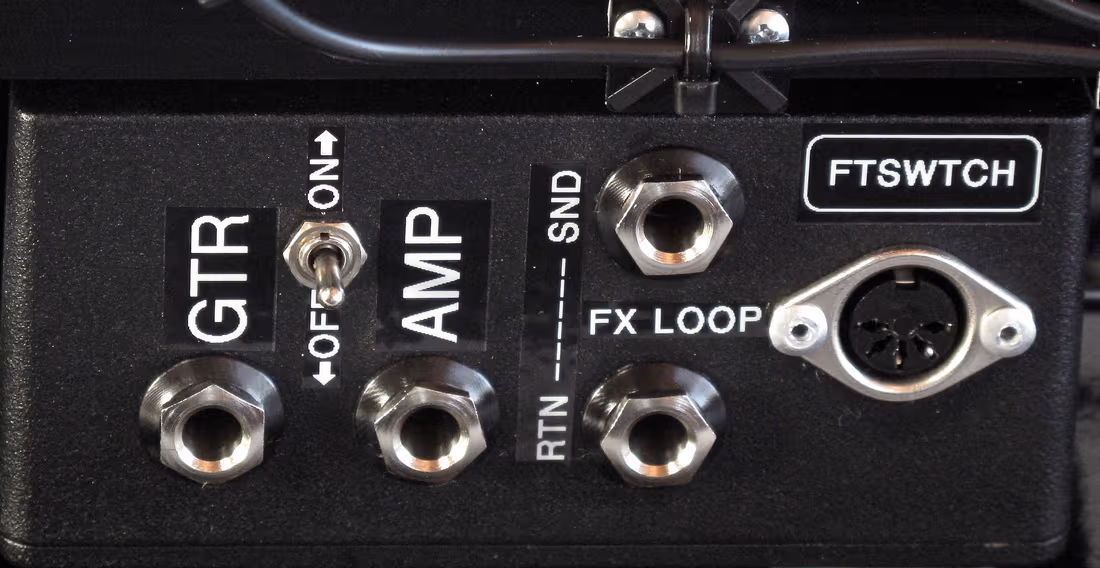

Vertex Dual Buffer (single input and single output buffer), MIDI pass-through for Custom Dual Amplifier Footswitch, Switchable Effects Loop (to assign the Delay and Reverb pedals to the amp effects loop OR in front of the amp, in-series with the other effects pedals).

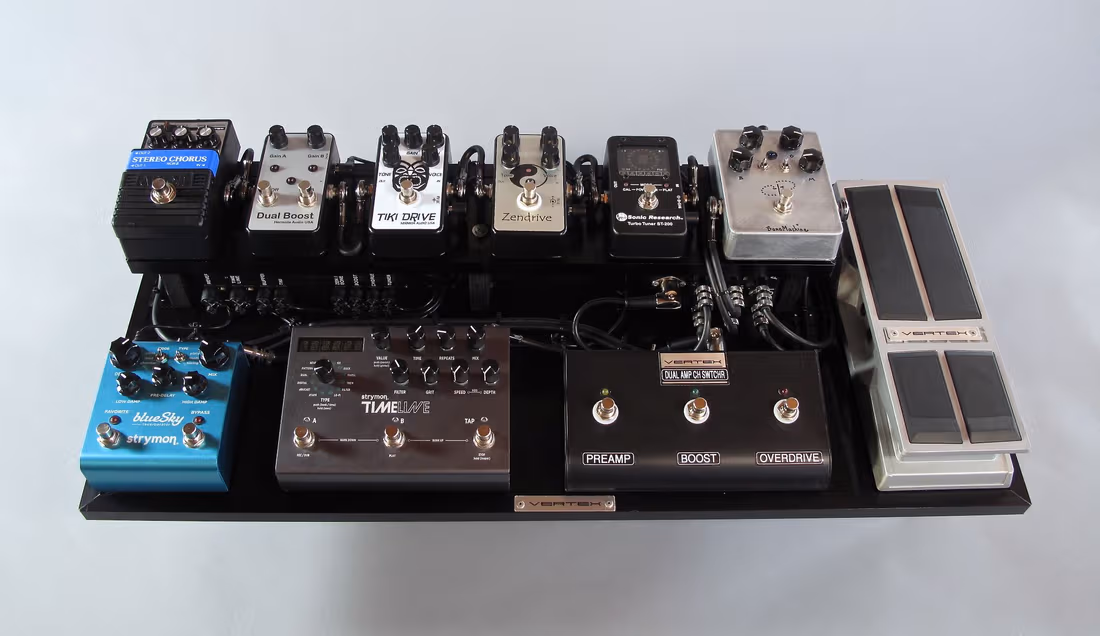

Zoom in (real dimensions: 1024 x 529)Image

AMP FOOTSWITCH

Vertex Custom Dual Amplifier Footswitch (allows functionality between the Bludotone and Glaswerks amplifiers [which have different footswitch and cable configurations] in one unit). Footswitch is fed through the interface via a 5-pin DIN (MIDI) cable.

Zoom in (real dimensions: 1024 x 479)Image

CABLE

Vertex Instrument Cable (small diameter)
Alpha Multi-Conductor Cable (MIDI)

CONNECTORS

Vertex Pancake and Straight
Amphenol ACPM-R
Switchcraft 5-Pin DIN (MIDI)

POWER SUPPLY

Voodoo Lab Pedal Power 4x4

SIGNAL PATH

In front of amp

INTERFACE (passive)
PTD Bone Machine Fuzz
INTERFACE (input buffer)
Sonic Research Turbo Tuner
Hermida Zendrive
Hermida Tiki Drive
Hermida Dual Boost
Vertex Landau Stereo Chorus
Vertex Stereo Volume/EXP Pedal
INTERFACE (output buffer)

In amplifier effects loop (switchable in-series, in front of the amp)

INTERFACE (send)
Strymon Timeline Delay
Strymon Blue Sky Reverb
INTERFACE (return)

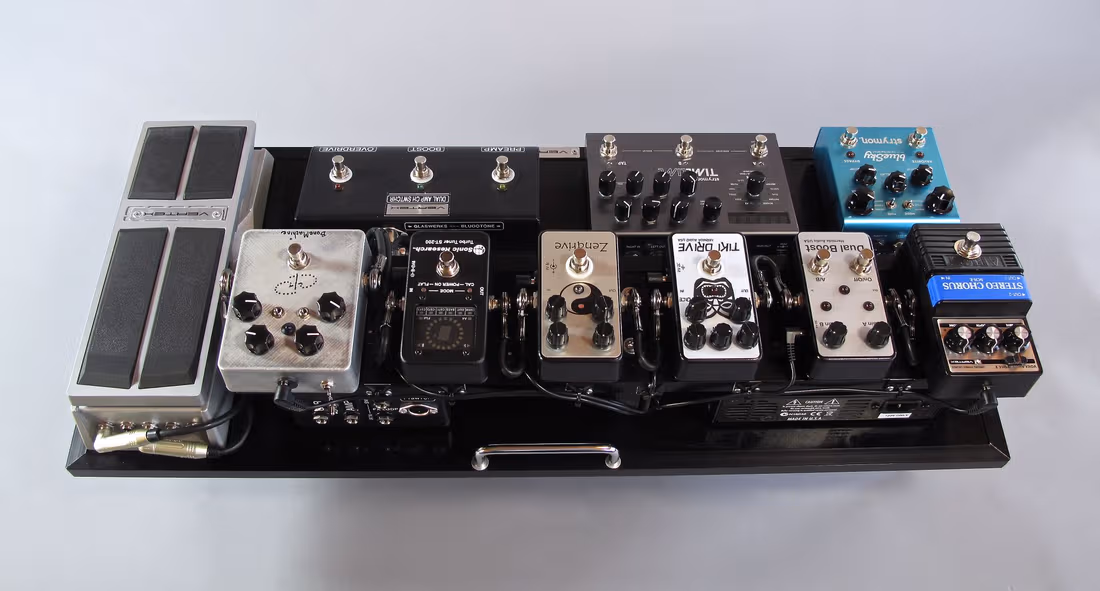

Zoom in (real dimensions: 1024 x 591)Image

Zoom in (real dimensions: 1024 x 549)Image
