Small Utility Pedalboard

Monday, November 26, 2012

DIMENSIONS

14" x 12"

INTERFACE

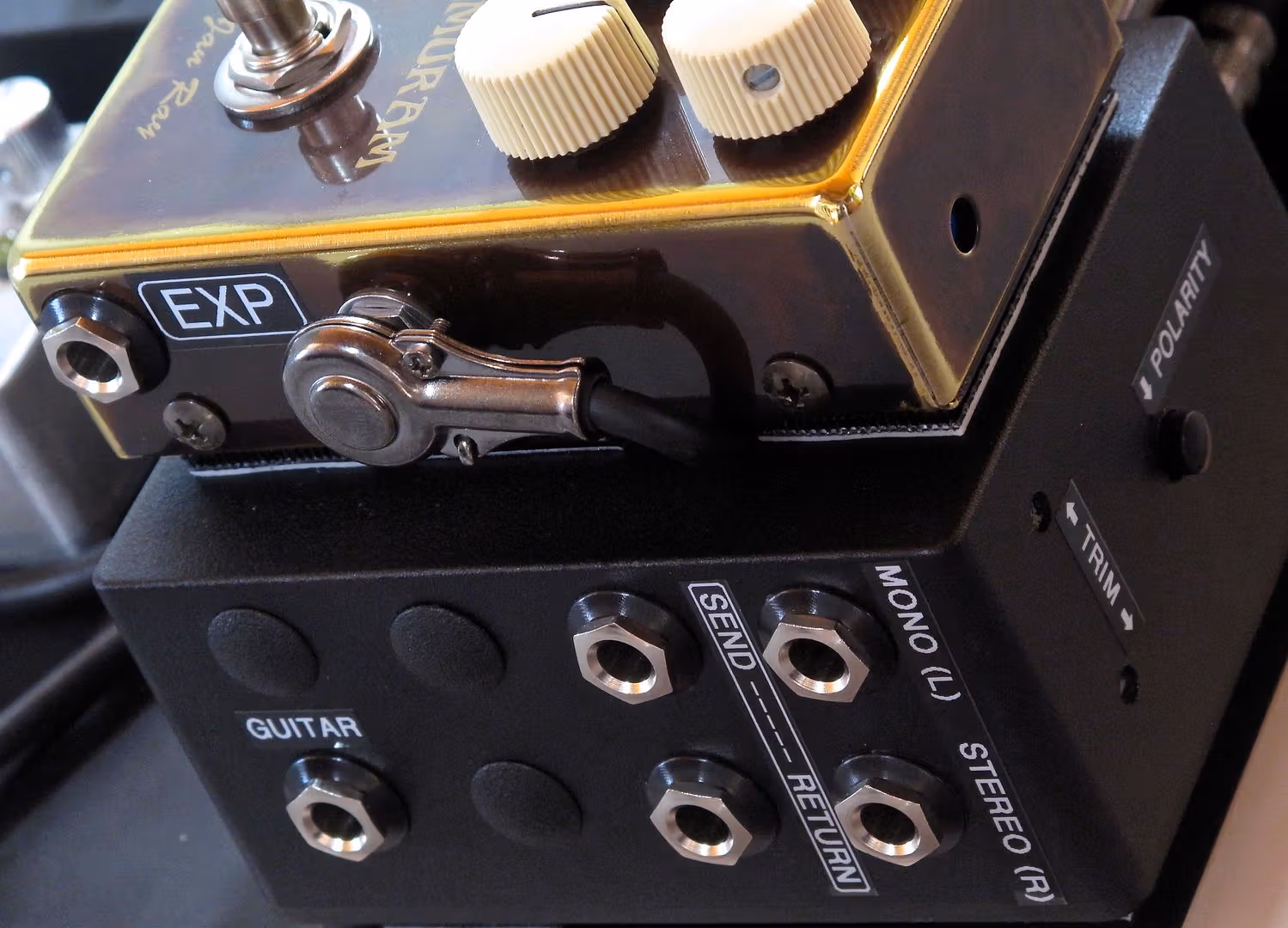

Vertex Tri-Buffer (single input buffer, dual output buffer) with a polarity switch and isolation transformer on the right output for a stereo amplifier set-up, and effects "break-out" to insert pedals off of the pedalboard between the distortion pedals and modulation pedals.

Zoom in (real dimensions: 1024 x 737)Image

CABLE

Vertex Small Diameter Instrument Cable

CONNECTORS

Vertex Pancake, Straight, and Right Angle
Switchcraft 380

POWER SUPPLY

Vertex (custom)

SIGNAL PATH

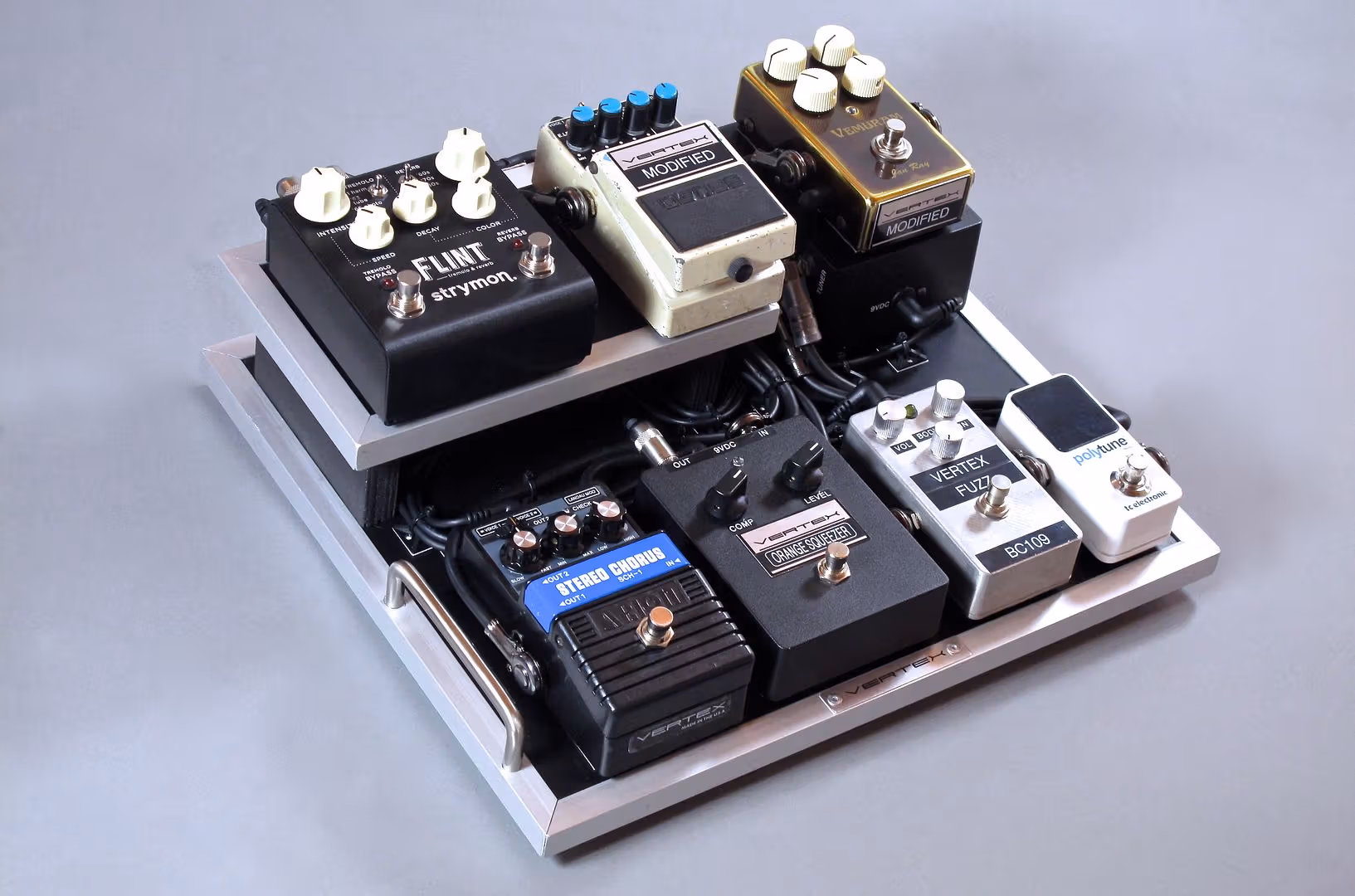

Interface (passive), Vertex BC109 Fuzz, Interface (input buffer), Vintage Armstrong Orange Squeezer (modified/re-housed), Vemuram Jan Ray Boost (modified for EXP), Interface (insert "break-out" point), Vertex Landau Stereo Chorus, Vertex Boss DD-2 Delay, Strymon Flint Reverb/Tremolo (stereo), Interface (dual output buffers for stereo L and R outs).

Zoom in (real dimensions: 1024 x 677)Image

Zoom in (real dimensions: 1024 x 610)Image

Zoom in (real dimensions: 1024 x 600)Image

Zoom in (real dimensions: 1024 x 634)Image
