The Guitar Lounge (Tokyo) Large Pedalboard

Monday, October 28, 2013

This is the second rig that I've built for Nobu Hayashi, the owner and esteemed Vertex dealer at The Guitar Lounge in Tokyo, Japan.  This is an incredibly organic rig that features several unique Vertex modifications and prototype designs.

SIZE + WEIGHT

13" x 29"  |  22 lbs. 15 oz.

INTERFACE

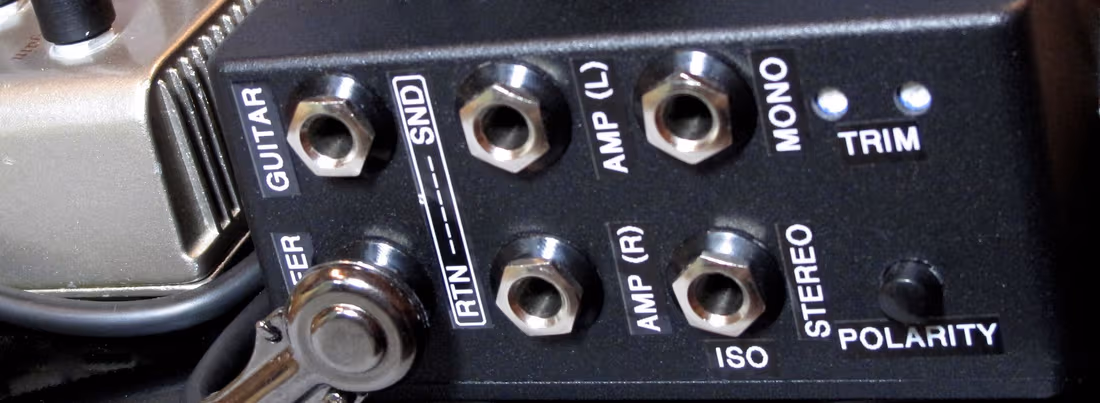

Vertex Tri Buffer (single input and dual ouput buffers with ISO transformer and polarity switch), effects insert "break-out" (to add additional pedals between the OD/Distortion and Modulation effects), and a passive guitar input (on interface) to optimzie use of the Vertex Fuzz.





CABLE

Vertex Instrument Cable

CONNECTORS

Vertex Pancake and R/A 1/4" Connectors

Rapco TRS 1/4" Connectors

Switchcraft 380 1/4" Connectors

POWER SUPPLY

GLAB PB-1

SIGNAL PATH

INTERFACE (passive), Smokey Signals Tubeless OD, Vertex BC109 Fuzz, INTERFACE (input buffer), Vertex Compressor, Vertex Dynaimc Distortion, INTERFACE (break-out), Vertex Boost (with Vertex EXP), Vertex DC-2 (modded) ((stereo)), Strymon Mobius ((stereo)), Strymon Timeilne ((stereo)), T.C. Hall of Fame Reverb ((stereo)), INTERFACE (output buffers)
