Val McCallum Pedalboard

Tuesday, January 14, 2014

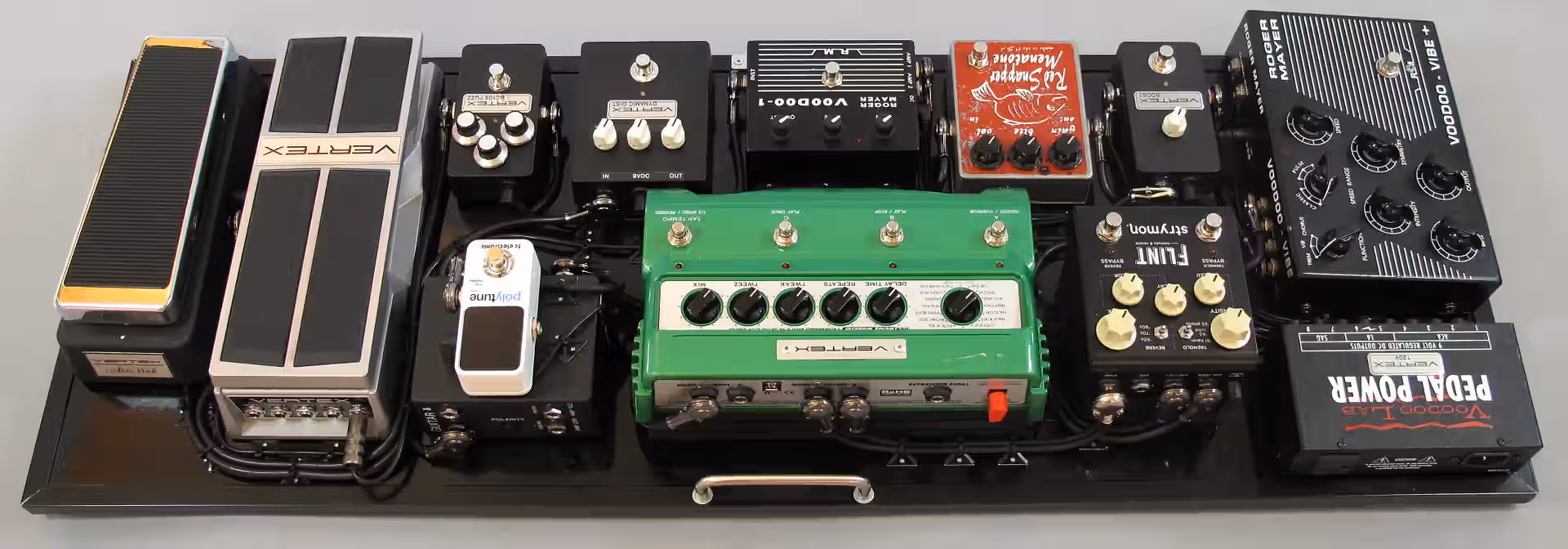

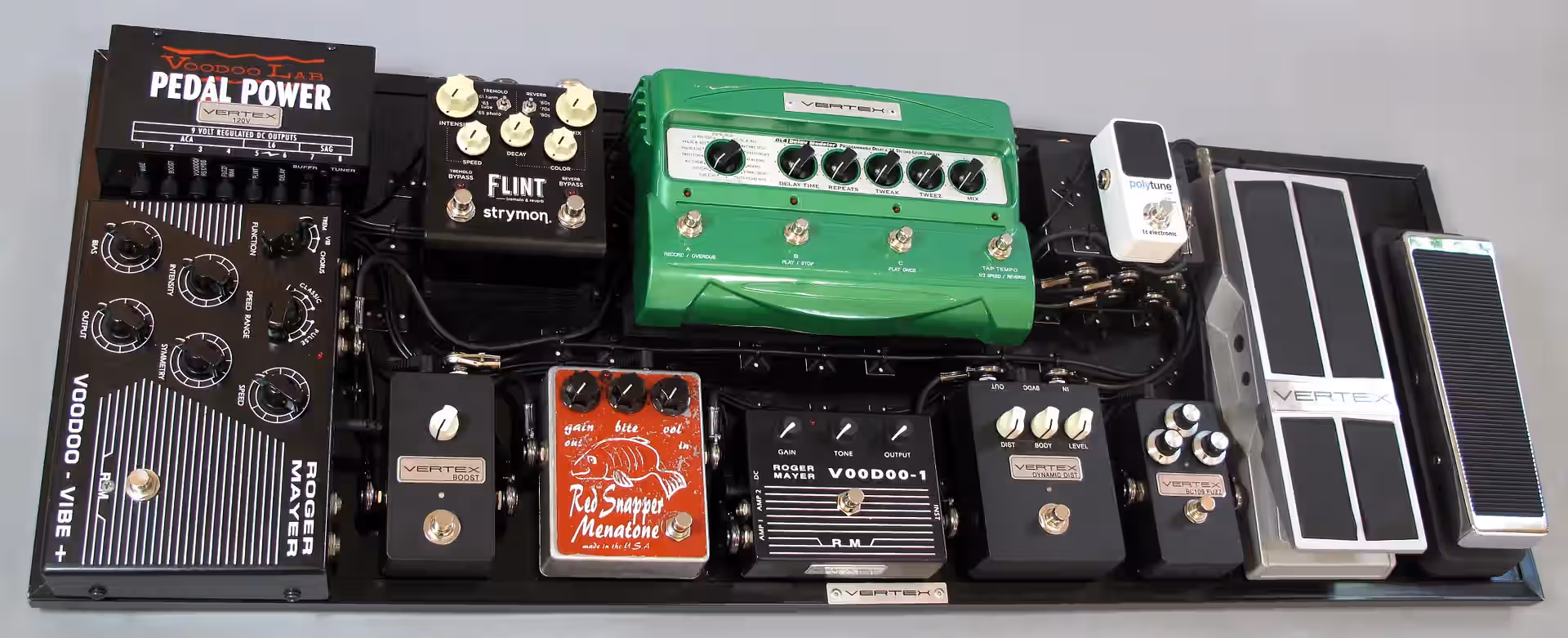

Here's a pedalboard I did for the amazing Val McCallum of Jack Shit and Jackson Browne.

SIZE + WEIGHT
13.5" x 38" | 31 lbs. 15 oz.
INTERFACE
Vertex Tri Buffer (single input and ouput buffer) with a passive input for the Fuzz and Wah with a polarity switch and isolation transformer on the right output for a stereo amplifier set-up. Both L and R outputs sum to MONO when the system is run out of the L output only.
CABLE
Vertex Instrument Cable
CONNECTORS
Vertex Pancake and Straight TS/TRS 1/4" Connectors
Rapco Pancake TRS 1/4" Connectors
POWER SUPPLY
Voodoo Lab Pedal Power 2 Plus
SIGNAL PATH
INTERFACE (passive), Vertex Axis Wah, Vertex BC109 Fuzz, INTERFACE (input buffer), Vertex Dynamic Distortion, Roger Mayer Voodoo-1, Menatone Red Snapper, Vertex Boost (volume controlled with Vertex EXP), Roger Mayer Voodoo Vibe, Vertex DL-4 Delay ((stereo)), Strymon Flint ((stereo)), INTERFACE ((stereo output buffers))
*T.C. Polytune Mini fed by tuner out (split from input buffer)
