Versatile European Travel Pedalboard

Monday, October 07, 2013

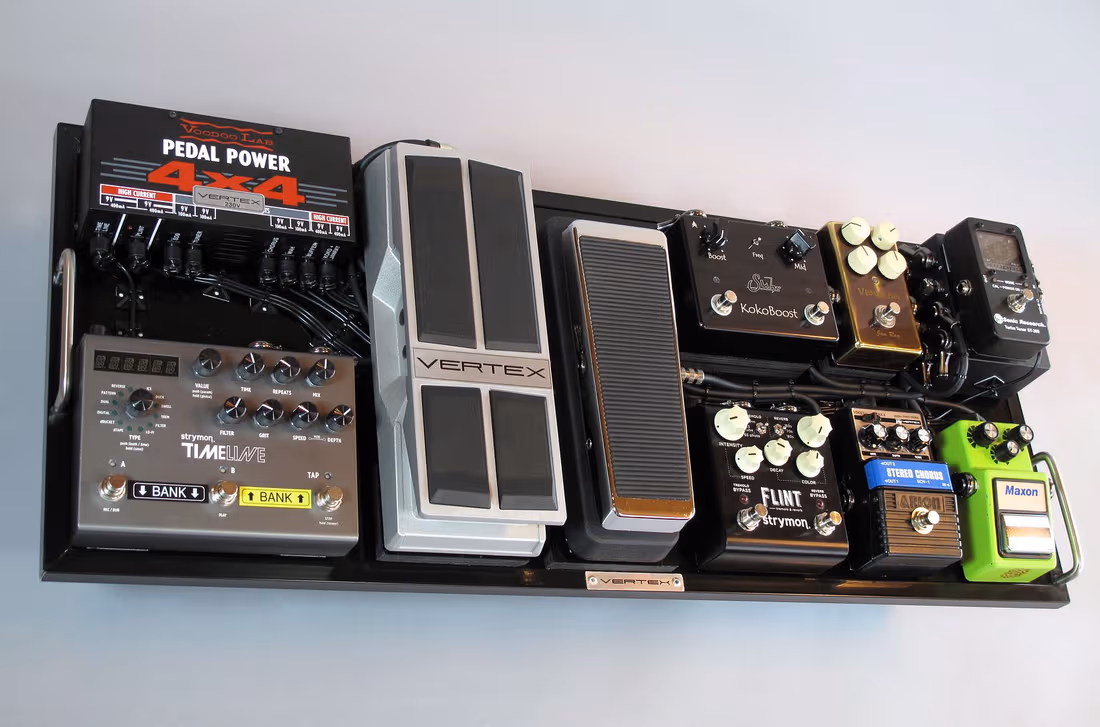

I built this rig for a client that required a compact pedalboard with expansion options, that could travel easily around Europe.

SIZE + WEIGHT

12.5" x 31"

25 lbs. 9 oz.

INTERFACE

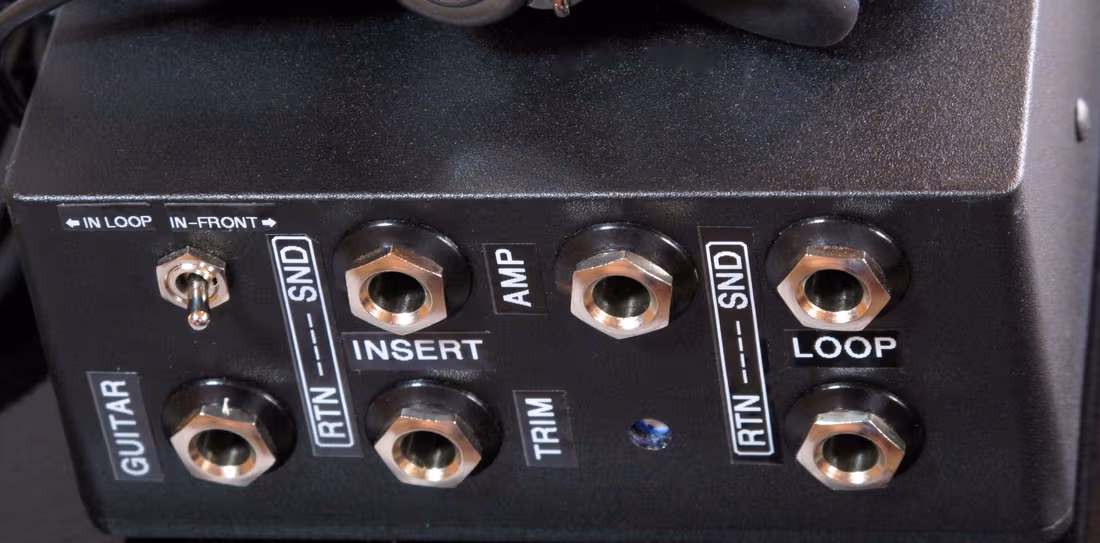

Vertex Dual Buffer (single input buffer, single output buffer), effects insert "break-out" to patch in a tremolo pedal after the distortion, overdrive, and boost pedals, but before modulation and time-based pedals, and a selectable effects loop function to assign the Strymon Timeline to an effects loop (when using an amp equipped with one), or in series as the last pedal in the signal path when using an amp without an effects loop.

CABLE

Vertex Instrument Cable

CONNECTORS

Vertex Pancake, Straight, and R/A 1/4" Connectors

Amphenol R/A Connectors

POWER SUPPLY

Voodoo Lab Pedal Power 4x4

SIGNAL PATH

***in front of amp

INTERFACE (input buffer w/ Sonic Research ST-200 in tuner out)

Vertex Axis Wah

Analogman Maxon SD-9

Suhr Koko Boost

Vemuram Jan Ray

INTERFACE (insert break-out)

Vertex Landau Stereo Chorus

Vertex Stereo Volume Pedal

INTERFACE (output buffer)

***in effects loop (assignable to the front of the amp or effects loop via toggle switch on interface)

Strymon Timeline

Strymon Flint
