DIY Four Cable Method & Wet / Dry Pedalboard Interface


The diagrams, templates, and materials listed correspond to this video (shown below), where I show all DIYers how to
build a Pedalboard Buffer Interface system just like the pros!  All of the info you'll need to design your own
customized buffer with options for mono, stereo, wet/dry, split mono, effects loops or 4 cable method, audition
loops, tuner outs, and more are all available as you scroll down the page.


FOUR CABLE METHOD or WET/DRY (TRI BUFFER)
Four Cable Method is ideal for a MONO pedalboard system where all the distortion, overdrive, and
other "dry" effects are running in front of an amplifier preamp, while the "wet" effects (like reverb
and delay) are running between the preamp and power amp, in the amplifier FX Loop (send/return).

Wet/Dry similarly is ideal for a MONO pedalboard system where all the distortion, overdrive, and other
"dry" effects are running in front of the amplifier preamp.  However, the "wet" effects (like delay and reverb)
are fed by a line out box (a line level output tapped off the output transformer padded down to line level)
that feed the "wet" effects (set to 100% wet/kill dry), wired into a parallel mixer.  The mixer then feeds
either A) the power amp that feeds the "wet" speaker cabinet, or B) a cab/speaker simulator that feeds
a balanced output to your DAW or FOH, or C) directly feeds your DAW or FOH (some pedals and rack gear
can feed a balanced output via XLR/TRS directly out of the device itself to an interface or mixer).
*NOTE: Wet/Dry systems require a line-out box and a parallel mixer for your "wet" fx.  For Line Out, we recommend the Bray LO-1
In some instances, you may need galvanic isolation for your line out, for this, we recommend the Suhr ISO Line Out Box.  For parallel
mixers we recommend the Musicom Lab Parallelizer to mix up to three wet effects devices in parallel, it also includes a dry mix control.

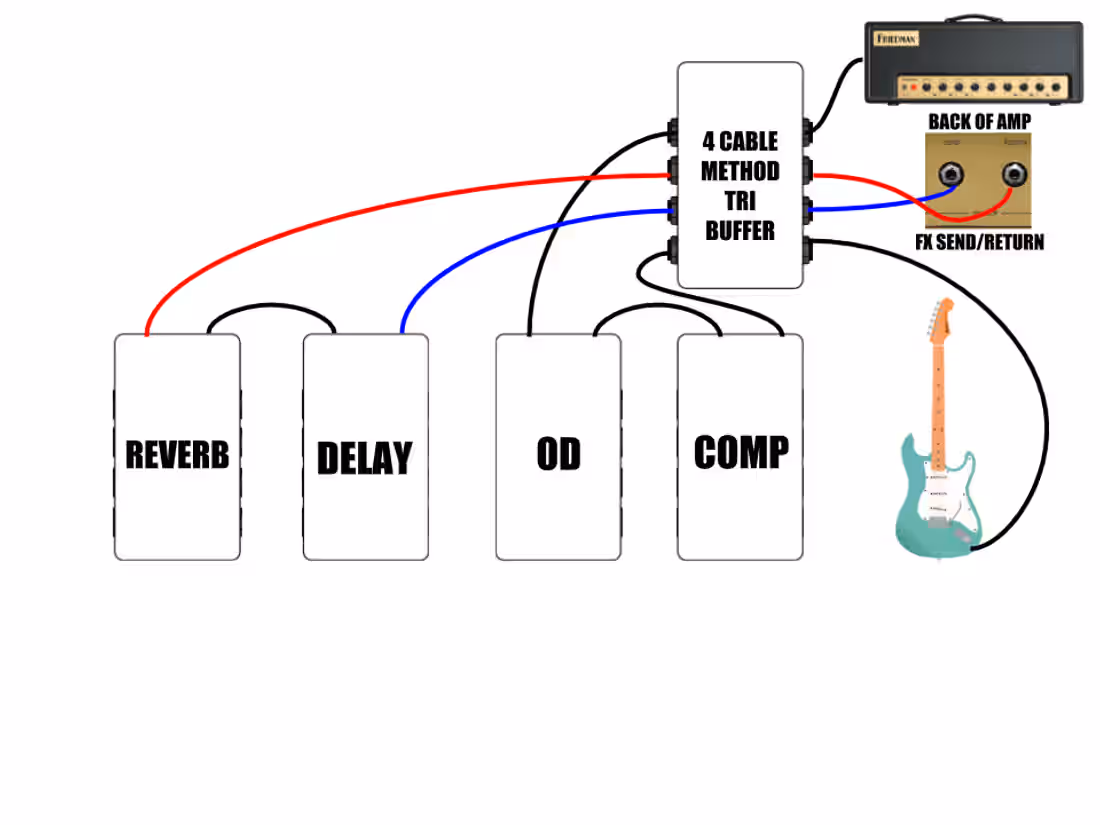

Application Example #1, FOUR CABLE METHOD (4CM)
for use with an amplifier with an fx loop

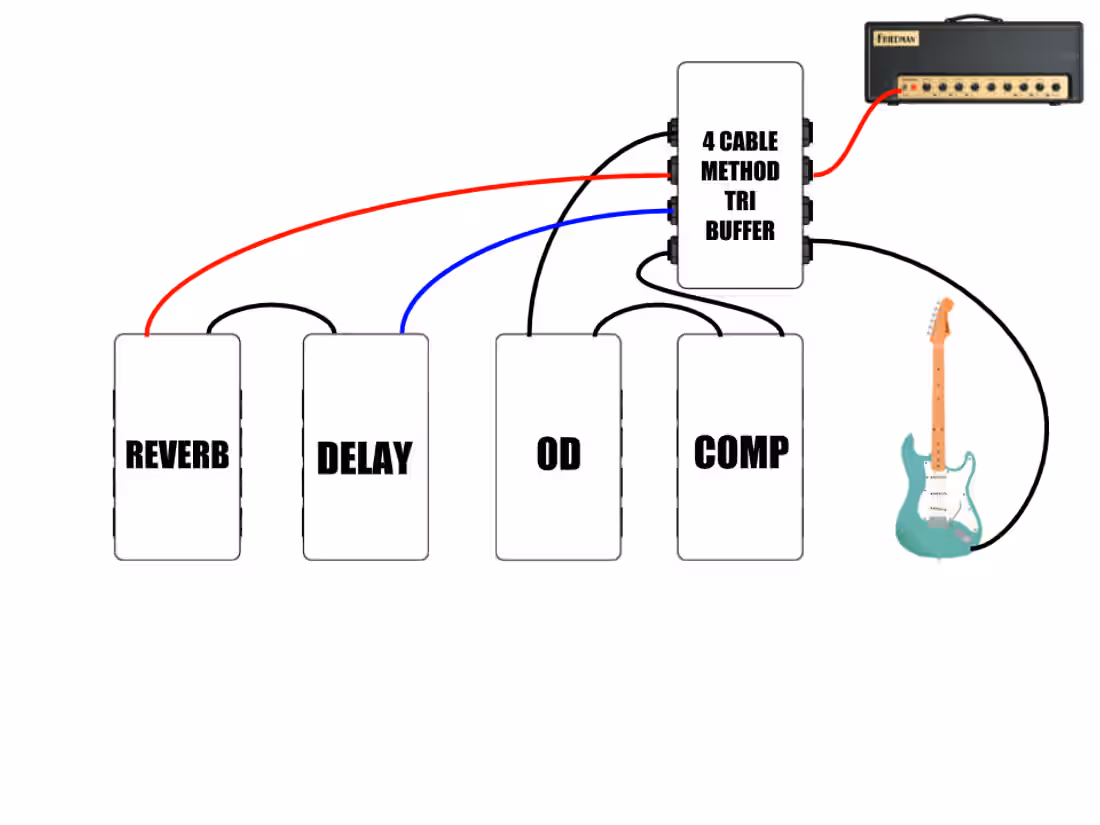

Application Example #2, WET/DRY
for use with a line out box, parallel mixer (FX set to 100% wet/kill dry), dry amp & speaker cab, plus power amp & wet speaker cab

Application Example #3, All FX IN SERIES
for use with all fx in series in front of an amplifier, when you can't do 4CM or W/D, simply use the "return" jack as your "output" jack
and all of the effects in the fx loop or w/d will be re-routed, in series, after all of the dry fx - all pedals will now run into the front of amp

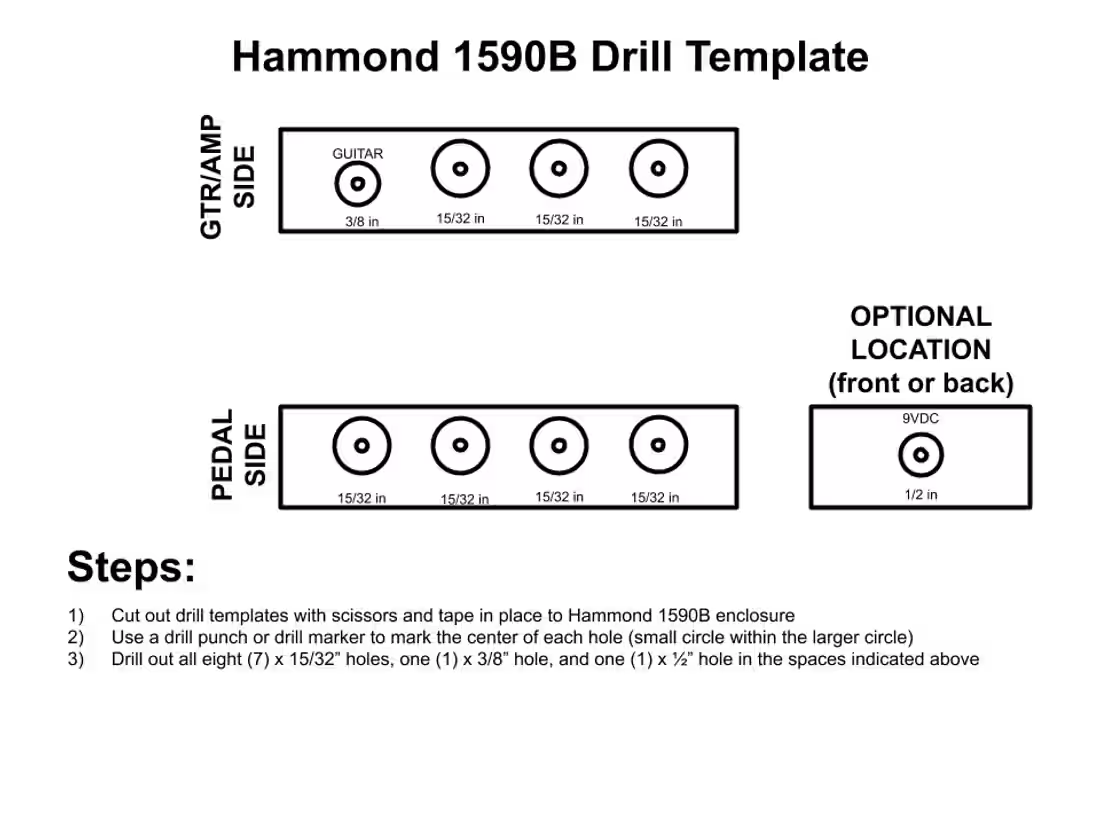

Drilling Template (Hammond 1590B Enclosure)
Download Diagram Here *Print at 100% Scale*

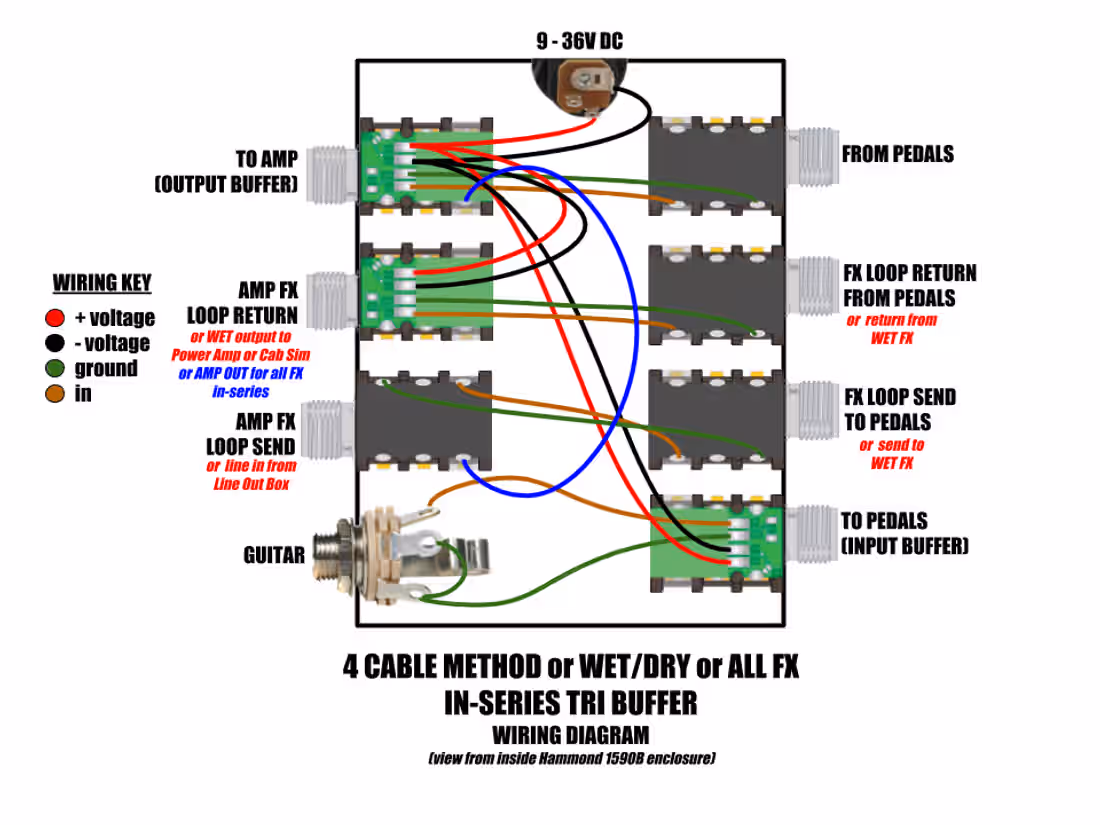

Wiring Diagram (shown from inside enclosure)

Bill of Materials:
1x Hammond 1590B Enclosure:
3x Creation Audio Labs Buffer PCB (select 1 Meg Ohm, Nylon ISO Jack, Unity Gain):
4x Neutrik NRJ6HF 1/4" TRS Jack(s):
4x Neutrik NRJ 1/4" Nut(s):
1x Switchcraft Tip Shunt 1/4" Jack(s):
1x DC Power Jack:
0x Keystone Hole Plugs:
1x Hook Up Wire:
